Product Details
＋

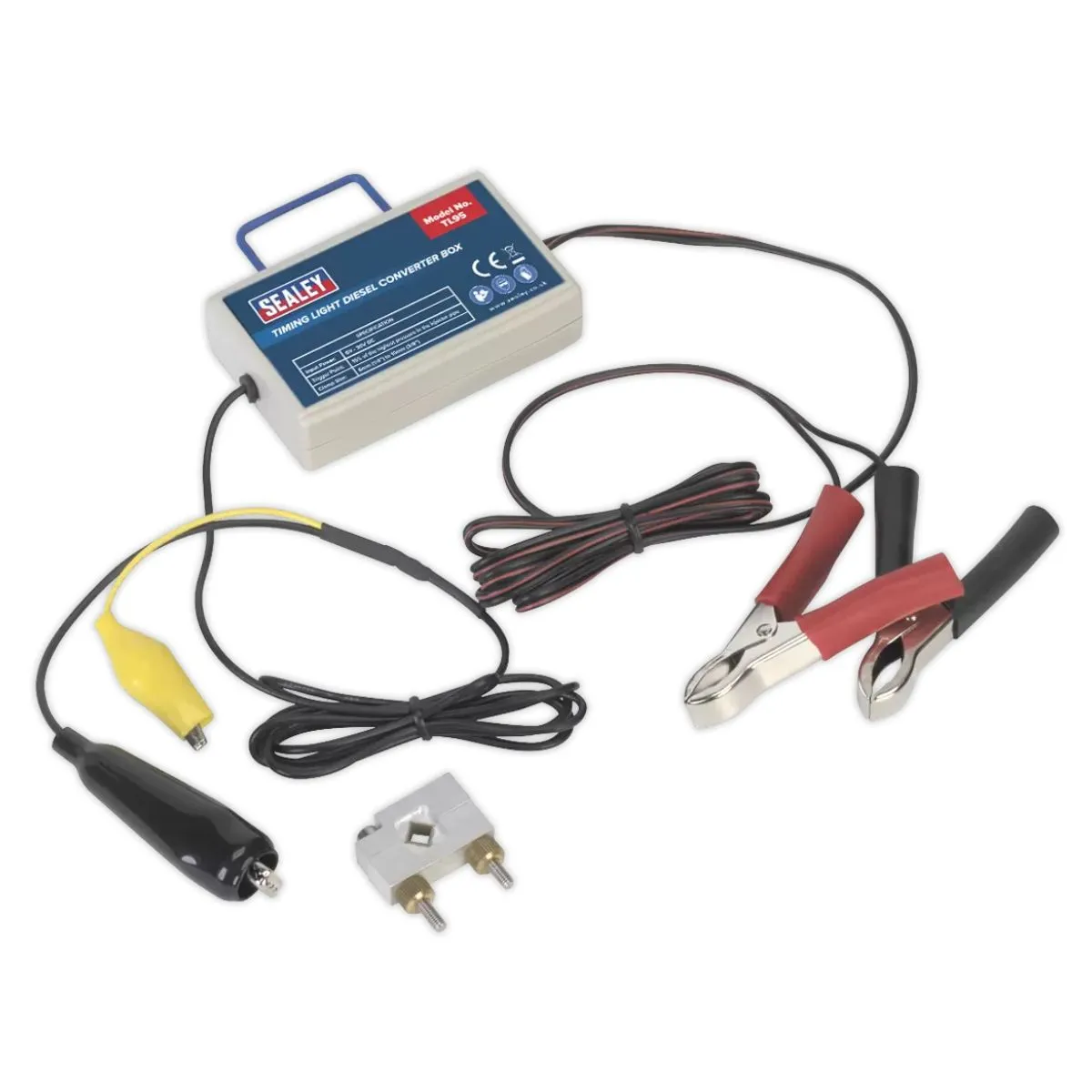

Sealey TL95 Timing Light Diesel Converter Box
Features:
Used to detect the pulse from the fuel pipes of diesel fuel injectors.
Works on most direct injection diesel engines fitted with 6mm(1/4) to 10mm(3/8) external fuel pipes.
Suitable for use with most timing lights. engine analysers and multimeters that have an inductive pick-up.
Specification:
Part no: TL95
Barcode: 5051747443334
Clamp Size: 6mm(1/4)-10mm(3/8)
Input Power: 6-30V DC
Nett Weight: 0.23kg
Trigger Point: 15% of the highest pressure in the injector pipe
Barcode: 5051747443334
Clamp Size: 6mm(1/4)-10mm(3/8)
Input Power: 6-30V DC
Nett Weight: 0.23kg
Trigger Point: 15% of the highest pressure in the injector pipe
