Trend Hinge Recessing Jig Single Piece HINGE/JIG

Trend HINGE/JIG is a specialized tool designed to make the process of recessing hinges into doors and frames more precise and efficient.

Features:

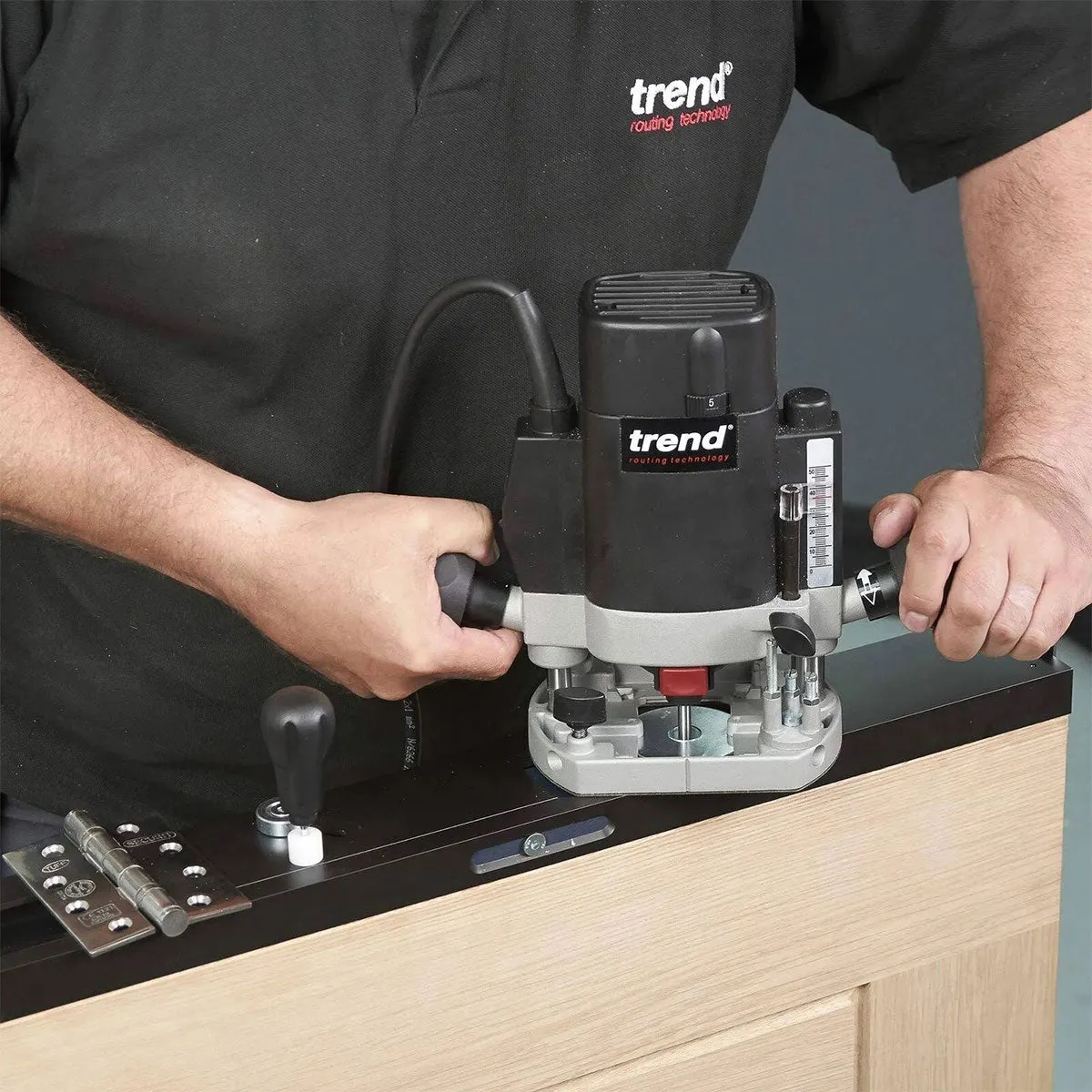

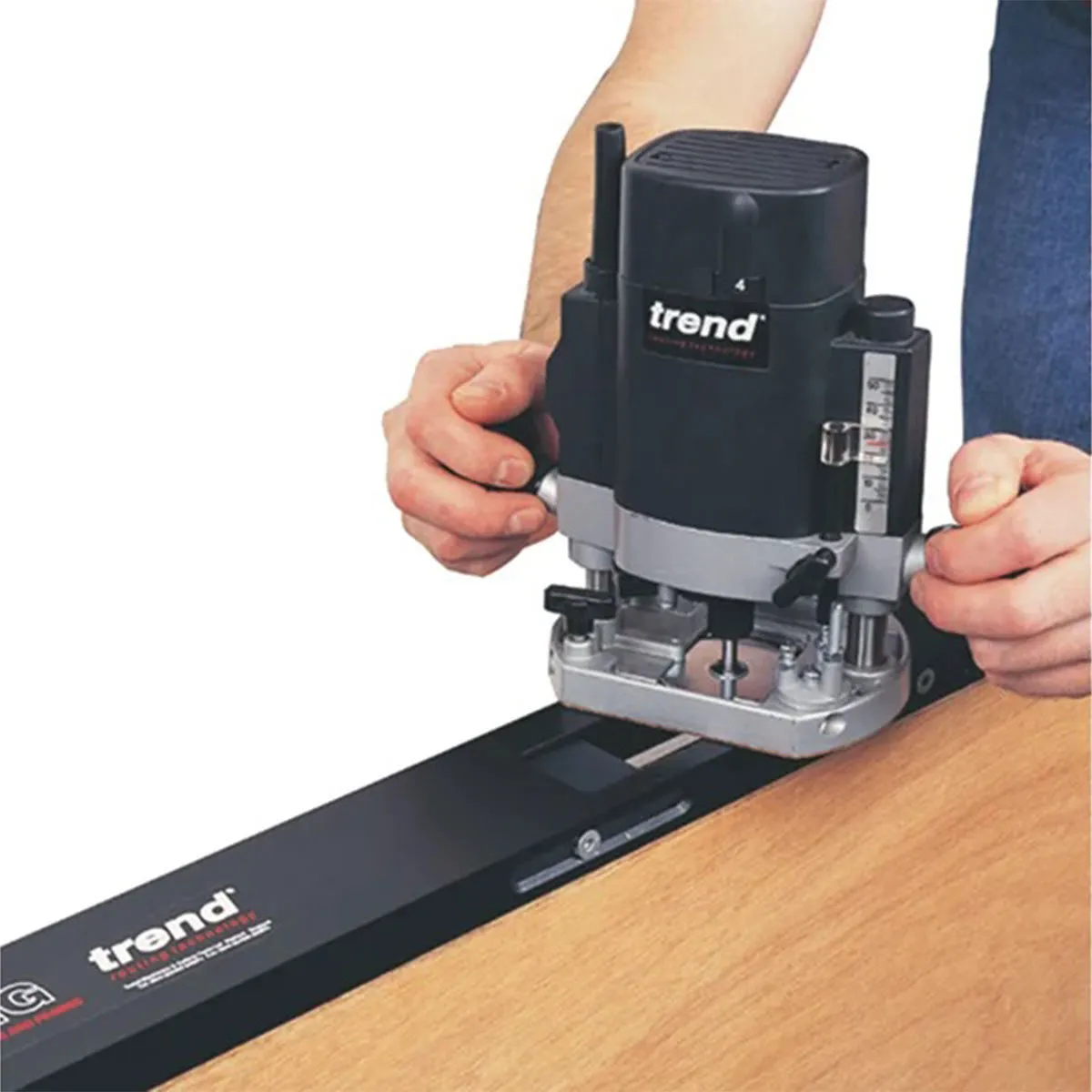

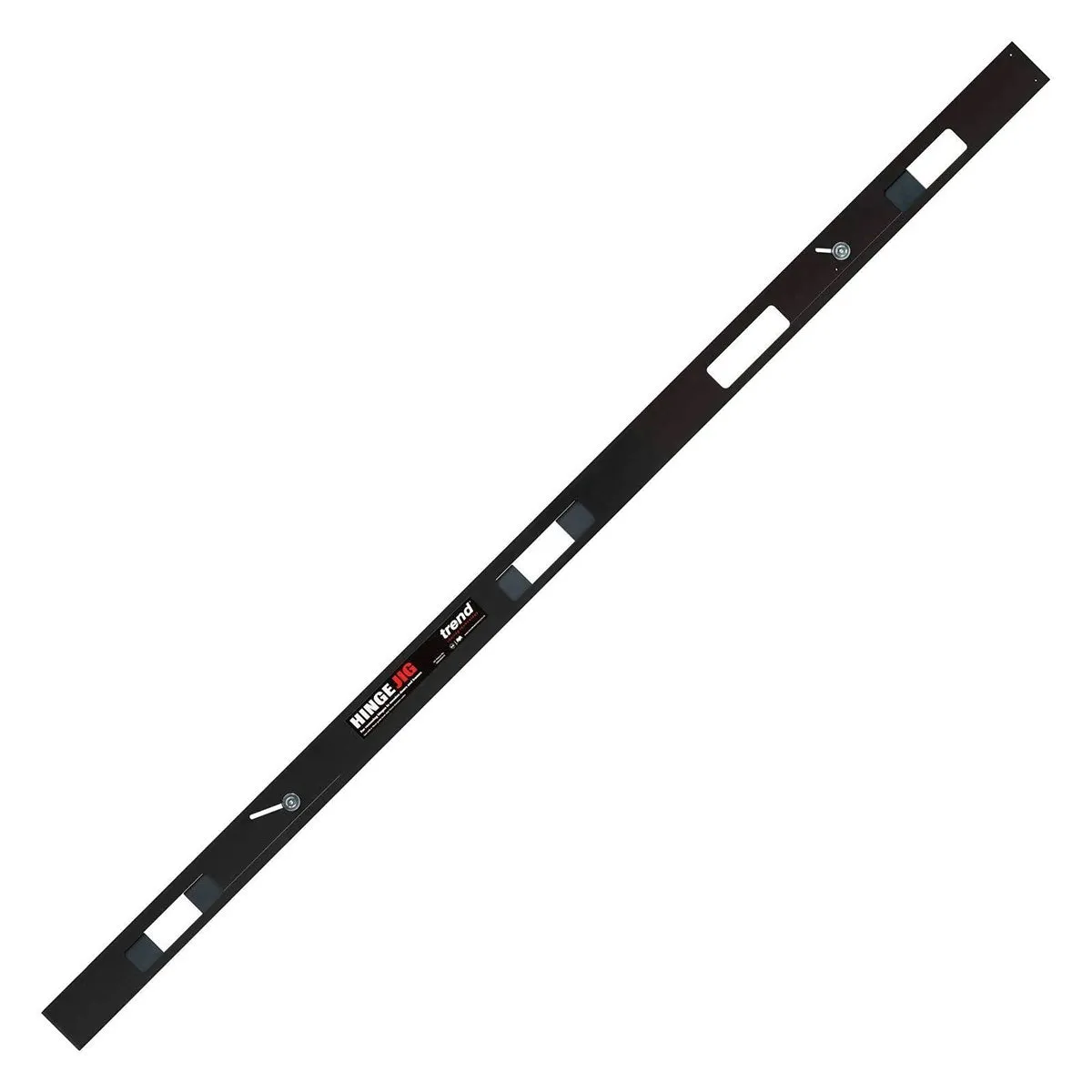

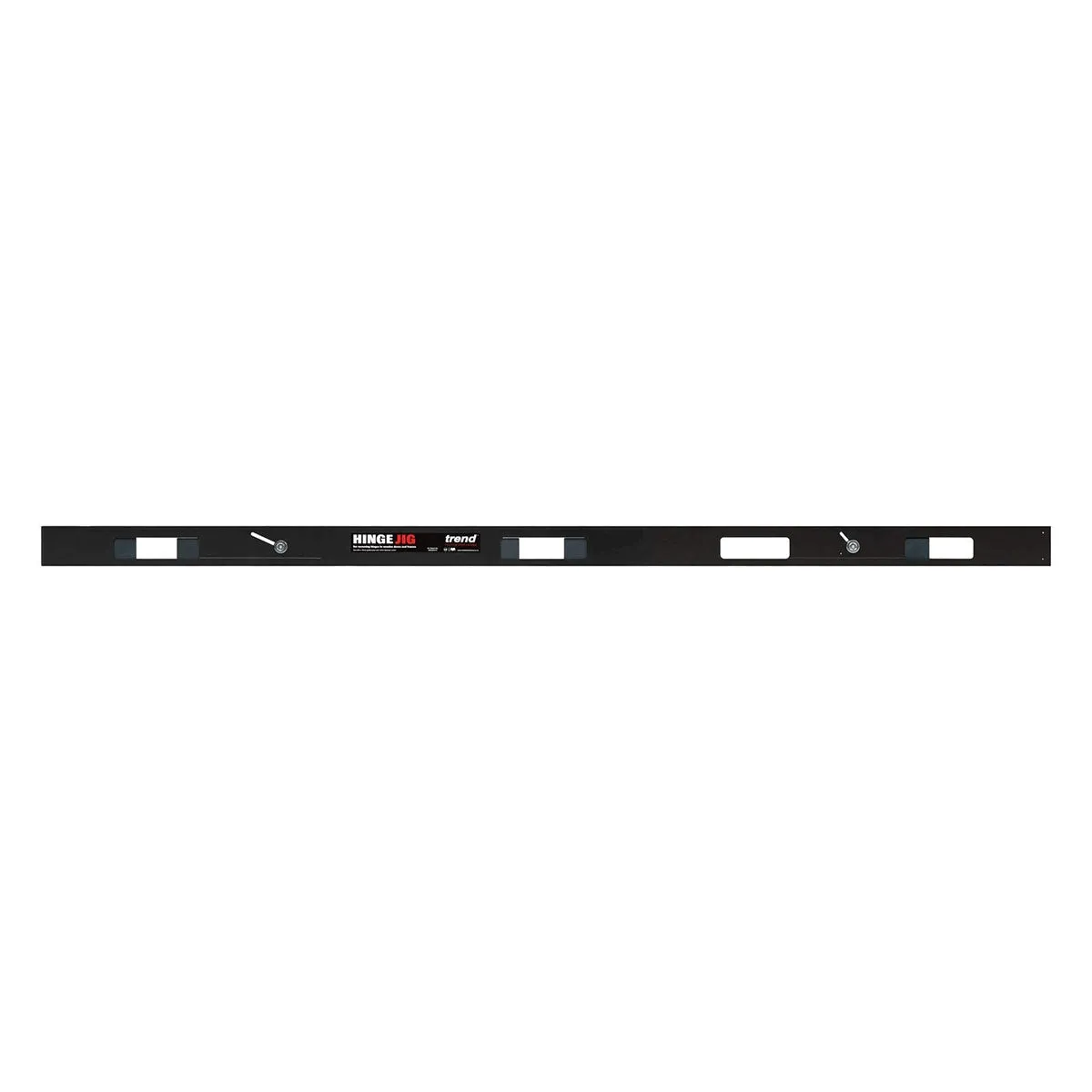

Single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router
Easy to use with minimal setting-up time. completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Four apertures for fire door requirements

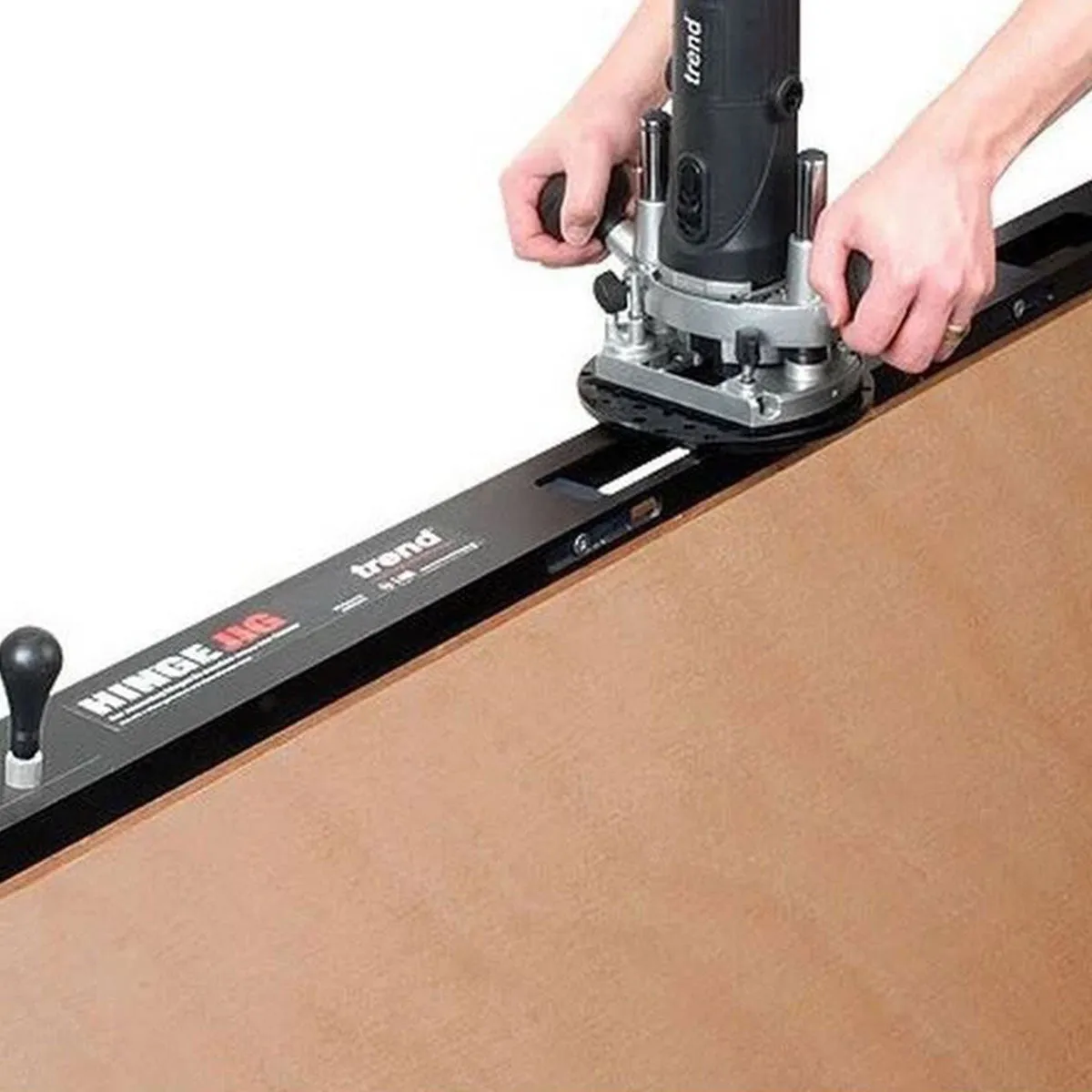

No need for marking out in the conventional way

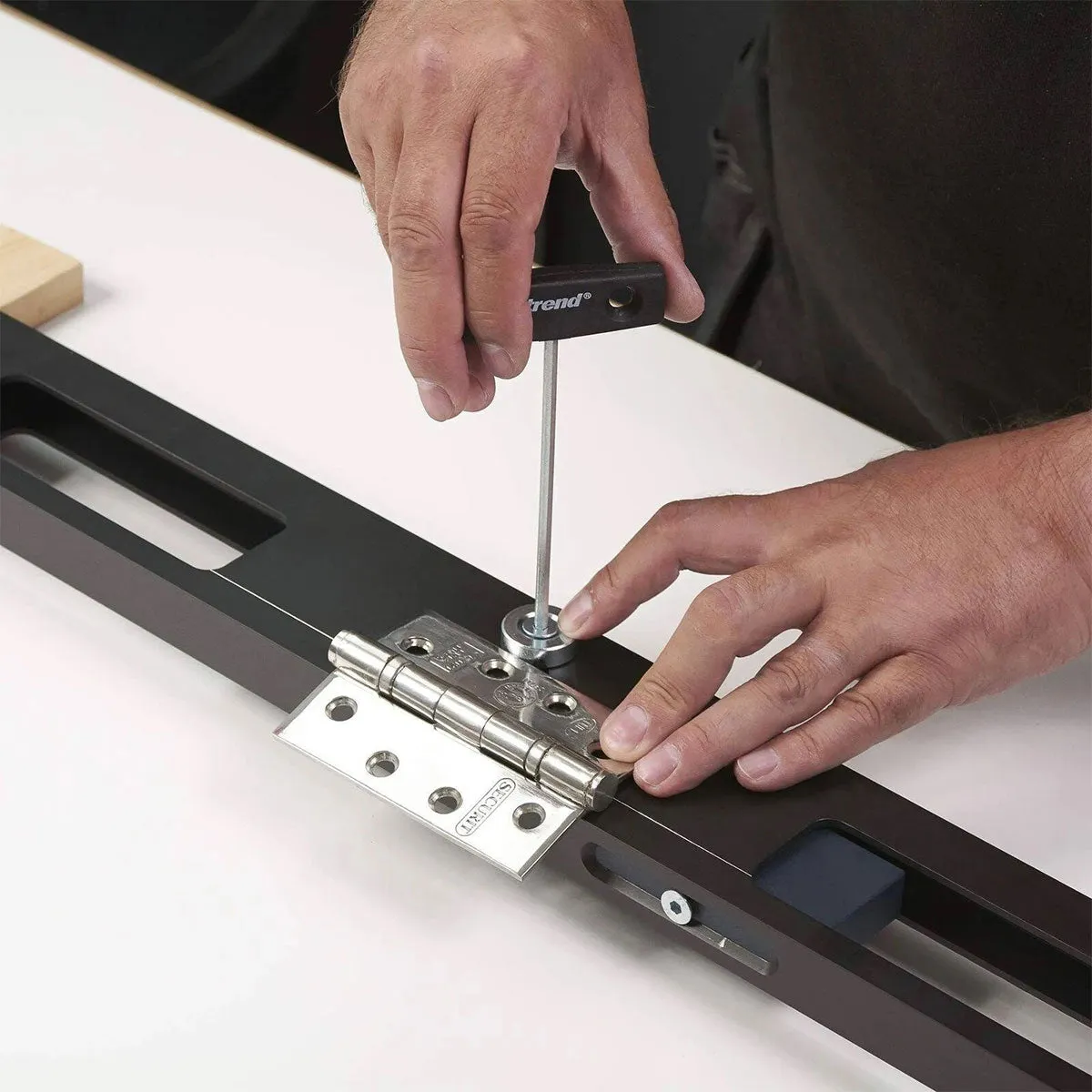

Quick & simple to set-up as the hinge is used as the pattern
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges

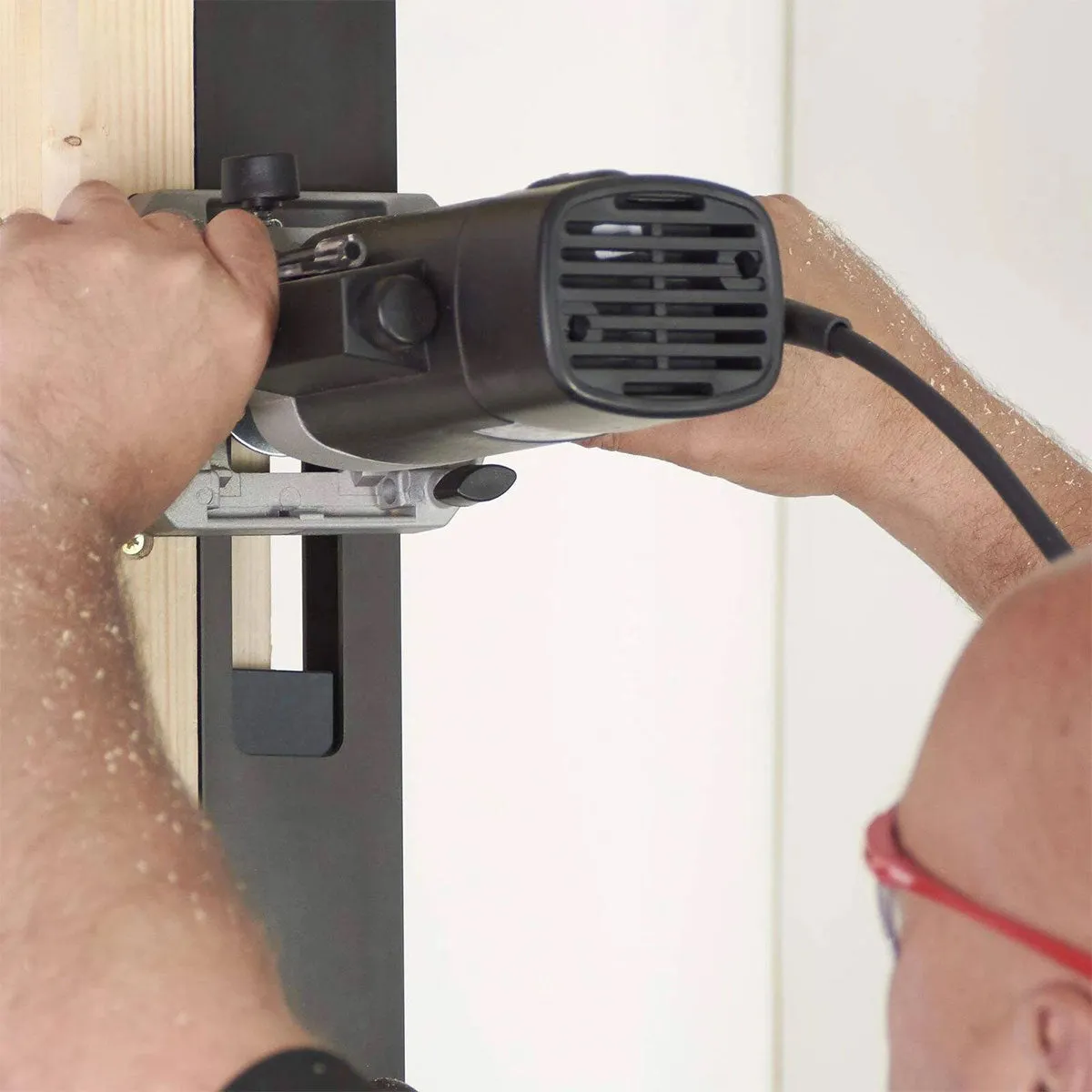

Can be used on both inside and outside doors. rebated frames and on maximum 25mm thick fixed stops

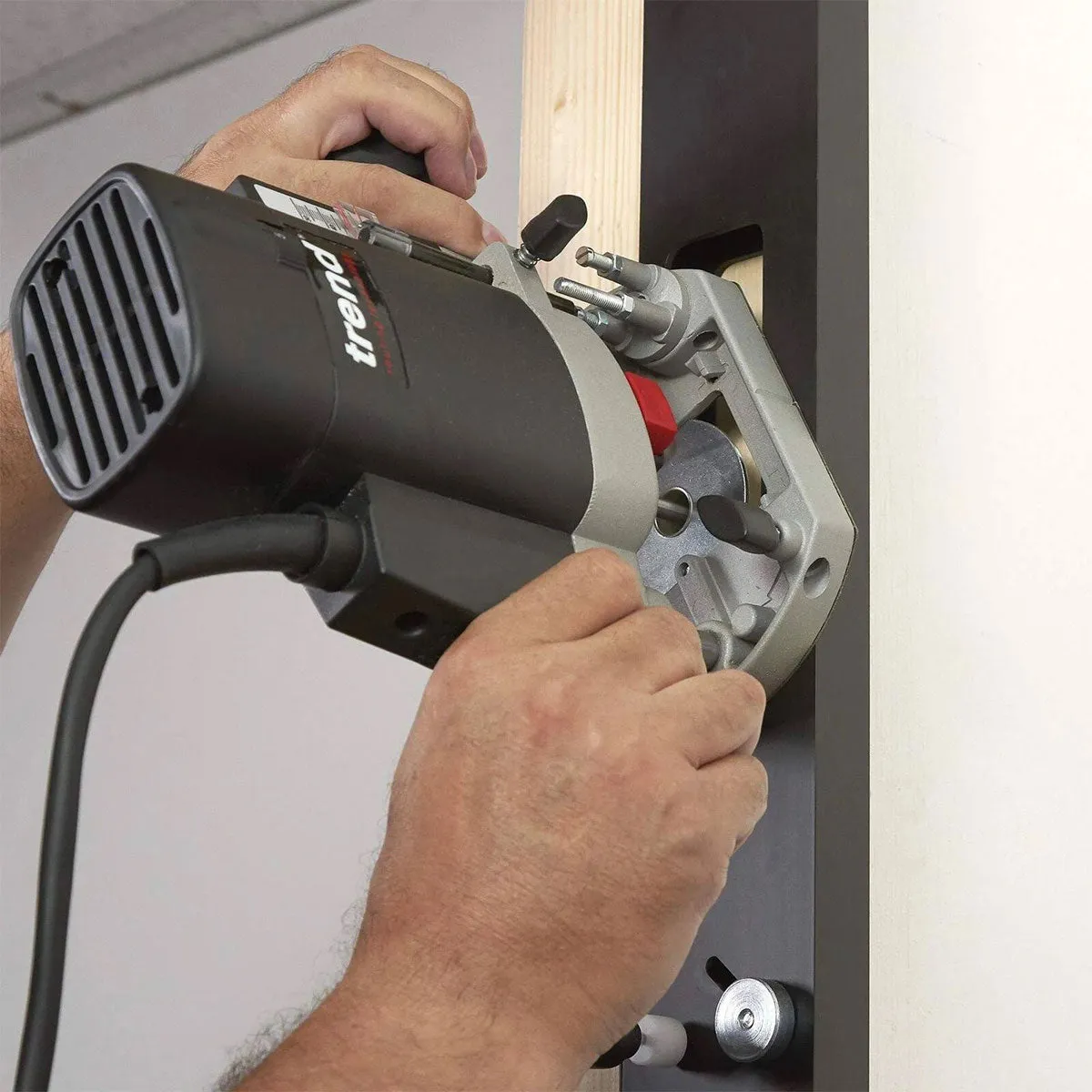

Use with a light duty plunge router with 1/4 inch collet
Long reach router cutter required. 12mm diameter with 70mm overall length
Angled position slots to prevent creep
Unibase may be needed

Product Specification:

Part Number: HINGE/JIG
Barcode: 5027654503300

Hinge Sizes Possible:

Length min.: 2 5/8 (67 mm)
Length max.: 5 (127 mm)
Width min.: 3/8 (9.5 mm)
Width max.: 1 3/8 (35 mm)
Width max. in 35mm rebate: 20 mm
Width max. in 44mm rebate: 30 mm

Door Sizes Possible:

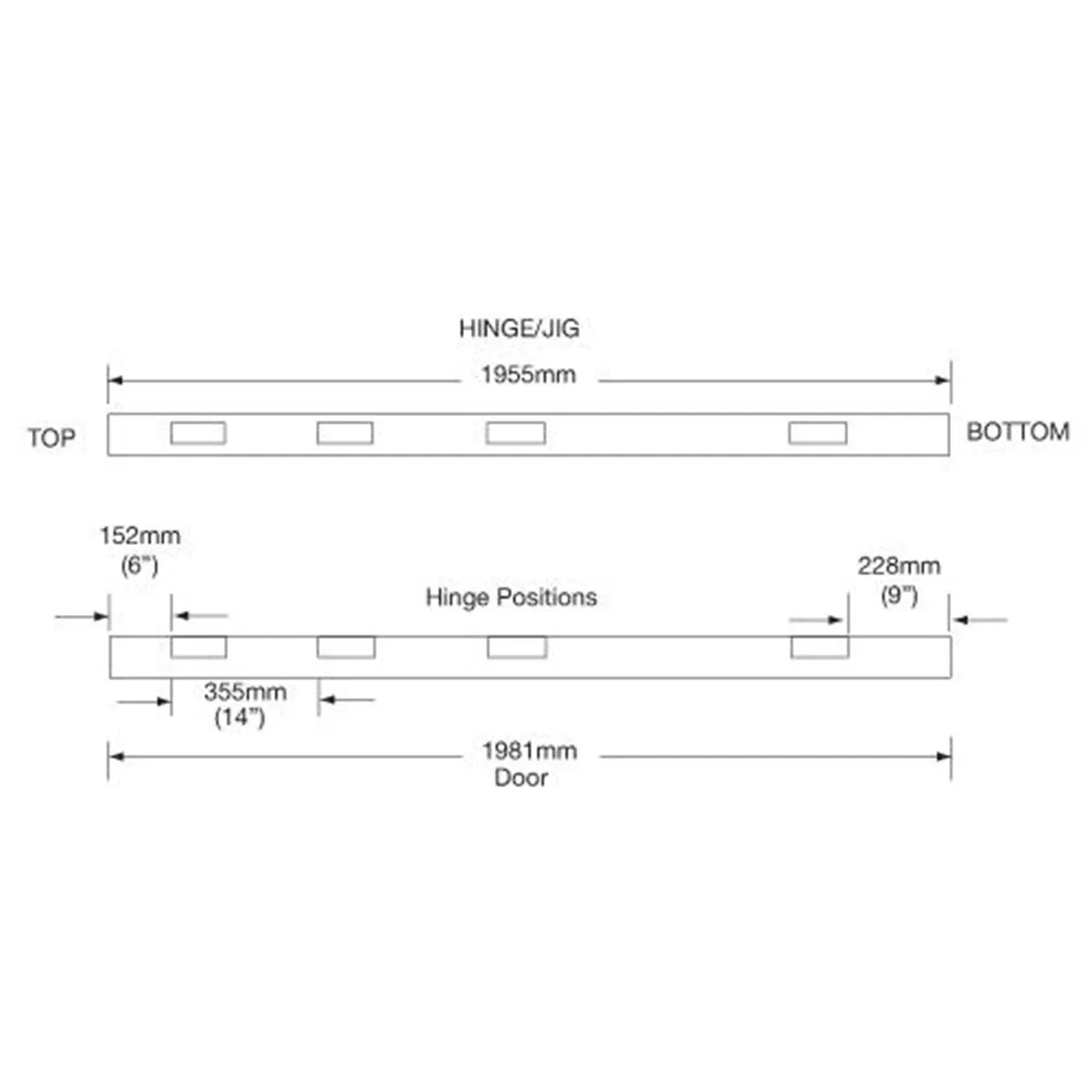

Height min.: 6' 5 (1955 mm)
Height max.: 2100 mm*
Thickness min.: 5/8 (16 mm)
Please note for doors over 2040mm the bottom hinge will be higher than 9 up.
Max. hinge leaf width 20mm (35mm doors)

**images for illustrative purposes only please refer to description and specification for full details of product**
