Product Details
＋

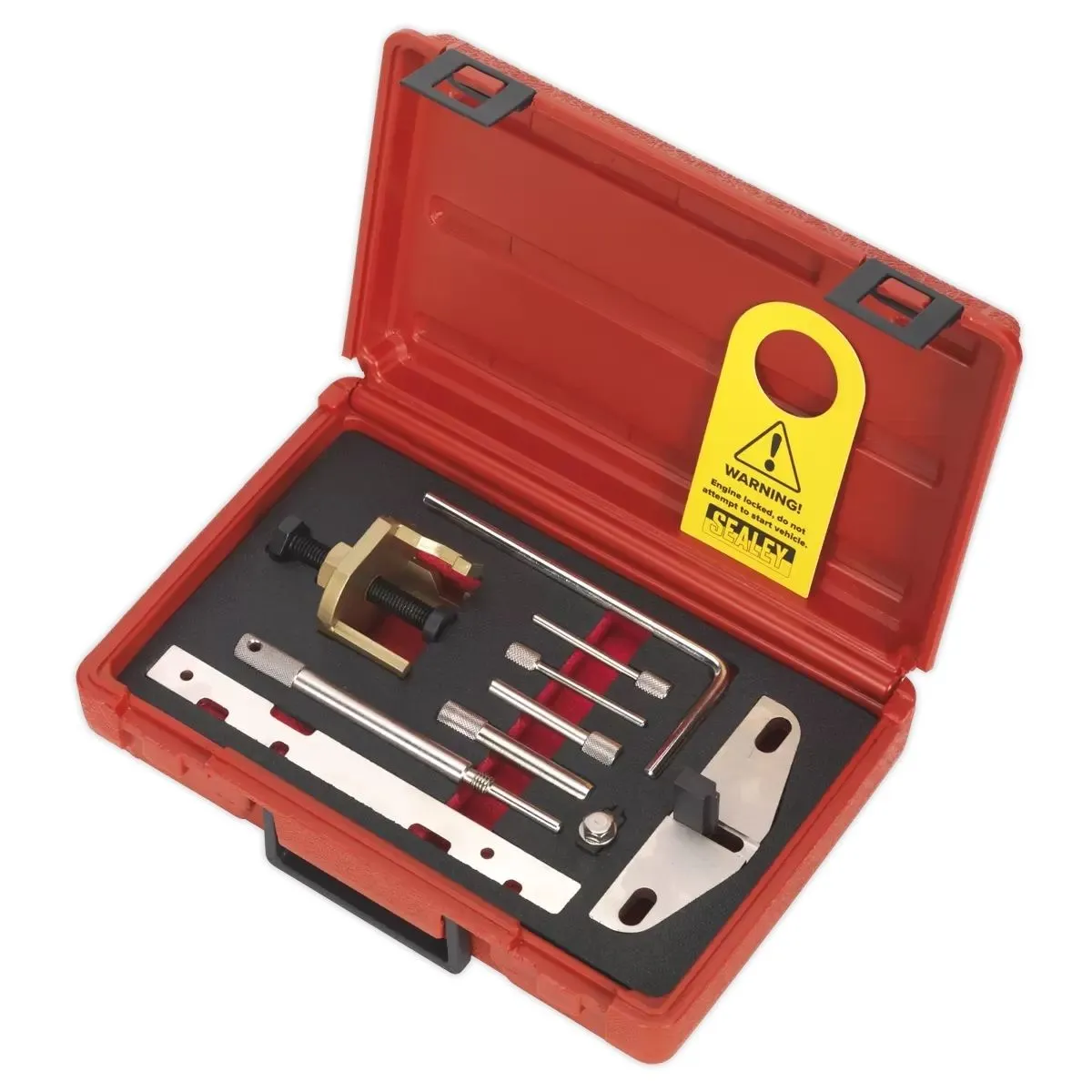

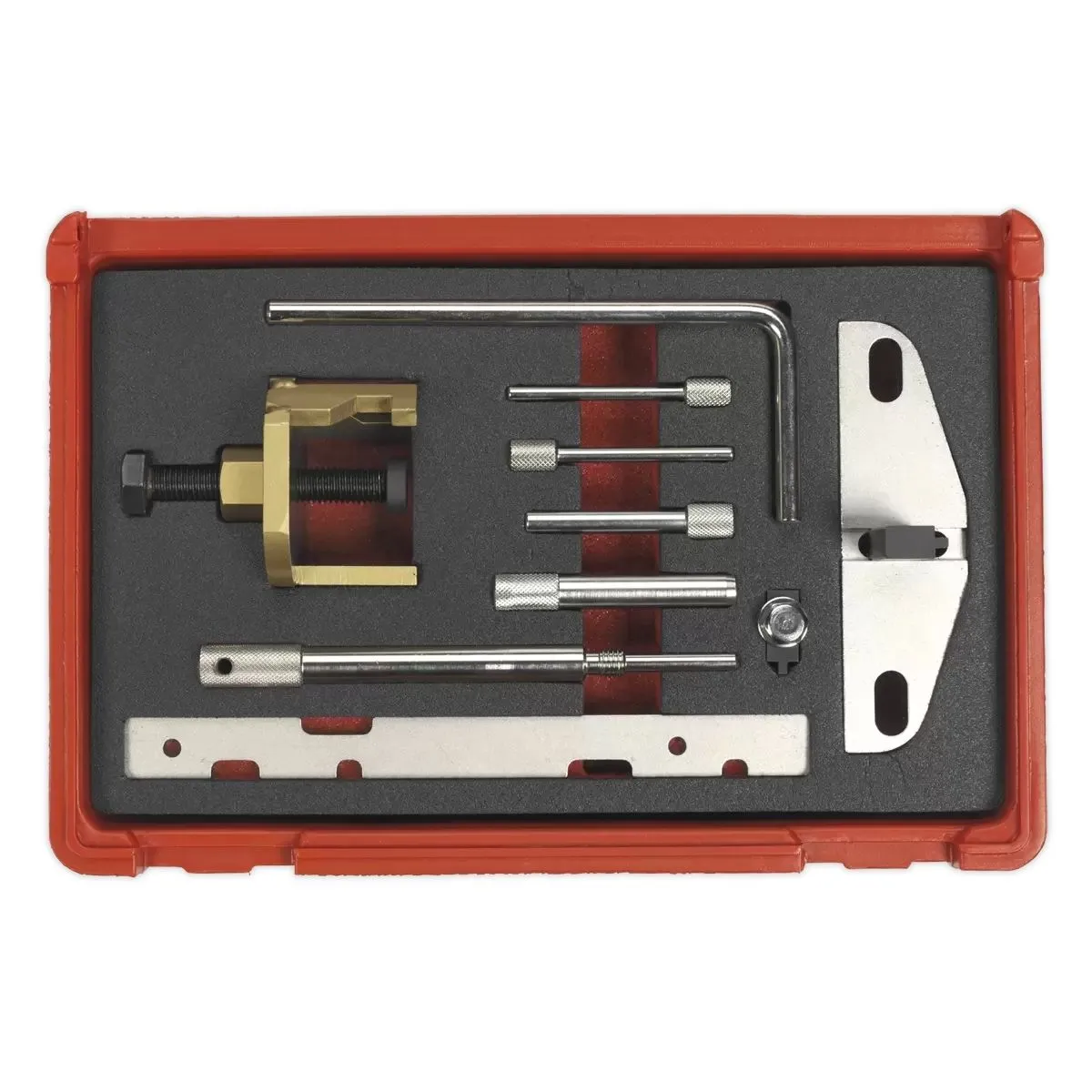

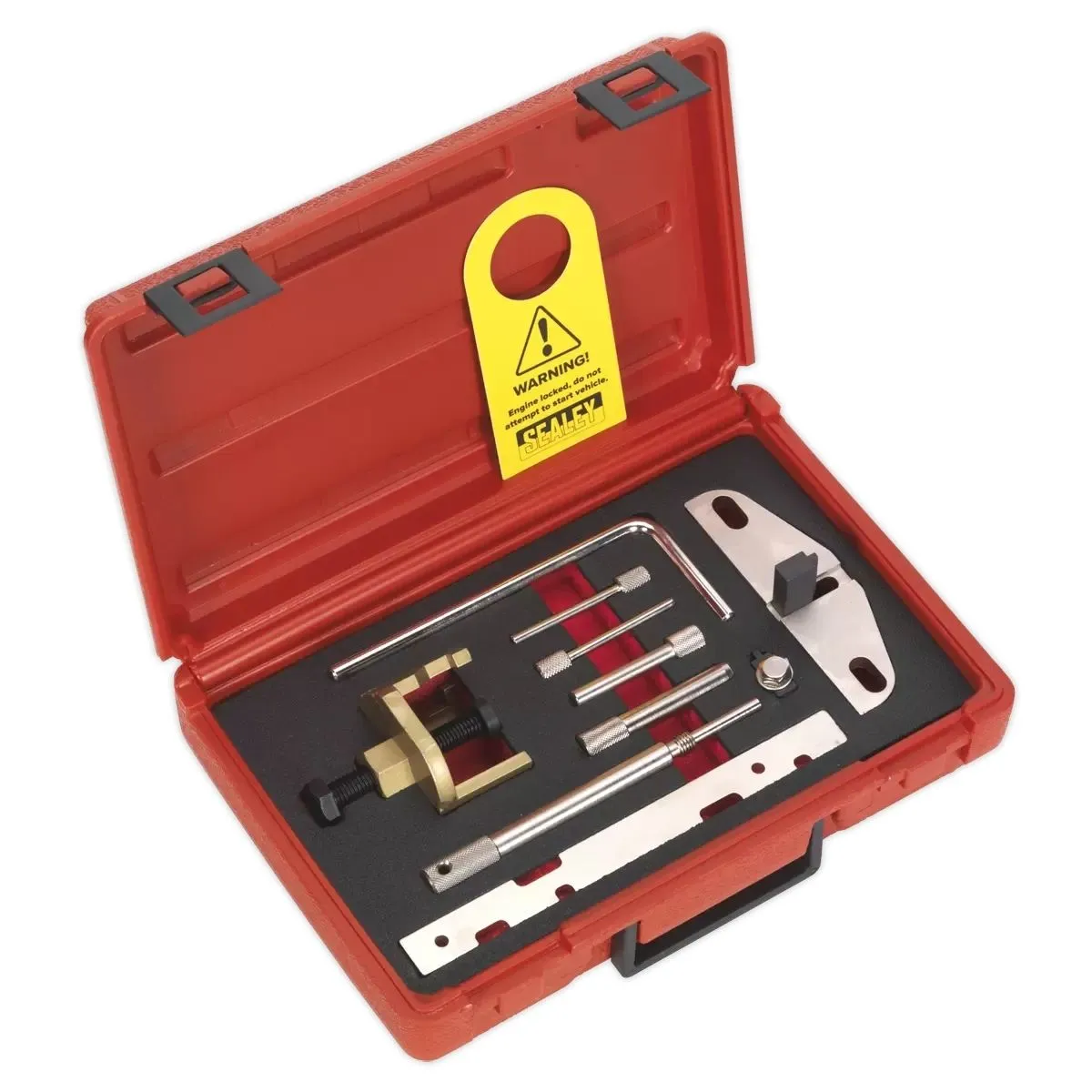

Sealey VSE5941 Diesel Engine Timing Tool Kit
Features:
Comprehensive kit covers Ford. Mazda and PSA 1.4. 1.5. 1.6. 1.8. 2.0 TDCi/HDi belt drive diesel engines.
Includes camshaft. crankshaft and high pressure pump locking tools plus camshaft sprocket removal tool.
Kit includes warning tag.
Specification:
Part Number: VSE5941
Barcode: 5054511137101
Brand: Sealey
Application(s)Citroen: C1 (05-10). C2 (03-10). C3 I/II (02-10). C3 III (10-15). C3 Pluriel (04-10). C3 Picasso (09-12). C4 (04-11). C4 II(11-15). C4 Picasso (06-12). C4 Grand Picasso (10-12). DS3 (09-12). DS4 (11-12). DS5 (12-15). C5 II (04-08). C5 III (04-12). Xsara II (02-04). Xsara Picasso (04-10)
Application(s)Ford: B-Max (15-18). Courier (00-02). C-Max (03-10). Ecosport (15-18). Fiesta (02-20). Focus (98-11). Fusion (02-11). Galaxy (06-10). Kuga (06-10). Mondeo (07-10). S-Max (06-10). Tourneo Connect (02-13). Transit Connect (02-13)
Application(s)Mazda: 2 (02-15). 3 (09-14)
Application(s)Peugeot: Bipper (08-10). Dispatch/Jumpy III (07-12). Expert III (07-12). Nemo (08-10). Partner I/II (05-11). Partner III (08-16). 107 (05-10). 1007 (05-10). 206 (01-12). 206 (09-13). 206CC (05-07). 207 (06-13). 207CC (07-15). 208 (11-15). 307 (01-08). 308 (07-15). 308CC (09-15). 407 (05-11). 508 (04-15). 2008 (13-15). 3008 (09-15). 4008 (12-15). 5008 (09-15) Traveller (16-20)
Application(s)1.4 TDCi: DV4TD(8HT). DV4TD(8HX). DV4TD(8HZ). DV4TD(8HW). DV4TED4(8HX). DVTED4(8HV). DV4TED4(8HY). DV4C(8HP). DV4C(8HR). DV4TED(8HS). F6JA. F6JB. F6JC
Application(s)1.6TDCi: DV6TED4(9HZ). DV6ATED4(9HX). DV6TED4(9HY). DV6DTED(9HP). DV6C(9HR). DV6CATED(9HX). DV6C(9HL). DV6TED(9HP). DV6ATED(9HY). DVTED4(9HV). DV6TED4(9HX). DV6C(9HD). DV6C(BHX). DV6C(BHZ). DV6(9HR). DV6BTED4(9HW). DV6DTED(9HJ). DV6ETED(9HN). DV6TED4BU(9HS). DV6BTED4(9HT). DV6BUTED4(9HT). DV6TED4B(9HV). DV6UTED4(9HX). DV6TED(9HD). DV6UTED4(9HU). DV6D(9HP). DV6TED4(9HV). DV6C (9HD). DV6TED4(9HW). DV6AT(9HX). DV6ATED(9HX). DV6CTED(9HC). DV6AUTED4(9HX). DV6TED4B. DV6DTED(9HF). HHJA. HHJB. G8DA. G8DB. HHDA. HHDB. MZ-CD. Y6
Application(s)1.8TDCi: BHPA. C9DA/B. FFBA. G6DA. G6DB. G6DC. HCPA. HCBP. KKDA. P7PA. P9PA. R2PA. R3PA. RWPA
Application(s)1.8D: C9DC. RTN. RTQ
Application(s)1.8TDi: C9DA/B. C9DC
Application(s)2.0 TDCi/HDi: AZWA. G6DA. G6DB. G6DC. RHE(DW10CTED4). QXWA. QXWB
Nett Weight: 1.85kg
OEM Tools Ford: 303-393. 303-393/01. 303-376B. 303-651. 303-193. 303-1059. 303-732. 303-734. 303-735
OEM Tools Mazda: 303-732. 303-734. 303-735
OEM Tools PSA: 0194-A. 0194-C. 0194B
Barcode: 5054511137101
Brand: Sealey
Application(s)Citroen: C1 (05-10). C2 (03-10). C3 I/II (02-10). C3 III (10-15). C3 Pluriel (04-10). C3 Picasso (09-12). C4 (04-11). C4 II(11-15). C4 Picasso (06-12). C4 Grand Picasso (10-12). DS3 (09-12). DS4 (11-12). DS5 (12-15). C5 II (04-08). C5 III (04-12). Xsara II (02-04). Xsara Picasso (04-10)
Application(s)Ford: B-Max (15-18). Courier (00-02). C-Max (03-10). Ecosport (15-18). Fiesta (02-20). Focus (98-11). Fusion (02-11). Galaxy (06-10). Kuga (06-10). Mondeo (07-10). S-Max (06-10). Tourneo Connect (02-13). Transit Connect (02-13)
Application(s)Mazda: 2 (02-15). 3 (09-14)
Application(s)Peugeot: Bipper (08-10). Dispatch/Jumpy III (07-12). Expert III (07-12). Nemo (08-10). Partner I/II (05-11). Partner III (08-16). 107 (05-10). 1007 (05-10). 206 (01-12). 206 (09-13). 206CC (05-07). 207 (06-13). 207CC (07-15). 208 (11-15). 307 (01-08). 308 (07-15). 308CC (09-15). 407 (05-11). 508 (04-15). 2008 (13-15). 3008 (09-15). 4008 (12-15). 5008 (09-15) Traveller (16-20)
Application(s)1.4 TDCi: DV4TD(8HT). DV4TD(8HX). DV4TD(8HZ). DV4TD(8HW). DV4TED4(8HX). DVTED4(8HV). DV4TED4(8HY). DV4C(8HP). DV4C(8HR). DV4TED(8HS). F6JA. F6JB. F6JC
Application(s)1.6TDCi: DV6TED4(9HZ). DV6ATED4(9HX). DV6TED4(9HY). DV6DTED(9HP). DV6C(9HR). DV6CATED(9HX). DV6C(9HL). DV6TED(9HP). DV6ATED(9HY). DVTED4(9HV). DV6TED4(9HX). DV6C(9HD). DV6C(BHX). DV6C(BHZ). DV6(9HR). DV6BTED4(9HW). DV6DTED(9HJ). DV6ETED(9HN). DV6TED4BU(9HS). DV6BTED4(9HT). DV6BUTED4(9HT). DV6TED4B(9HV). DV6UTED4(9HX). DV6TED(9HD). DV6UTED4(9HU). DV6D(9HP). DV6TED4(9HV). DV6C (9HD). DV6TED4(9HW). DV6AT(9HX). DV6ATED(9HX). DV6CTED(9HC). DV6AUTED4(9HX). DV6TED4B. DV6DTED(9HF). HHJA. HHJB. G8DA. G8DB. HHDA. HHDB. MZ-CD. Y6
Application(s)1.8TDCi: BHPA. C9DA/B. FFBA. G6DA. G6DB. G6DC. HCPA. HCBP. KKDA. P7PA. P9PA. R2PA. R3PA. RWPA
Application(s)1.8D: C9DC. RTN. RTQ
Application(s)1.8TDi: C9DA/B. C9DC
Application(s)2.0 TDCi/HDi: AZWA. G6DA. G6DB. G6DC. RHE(DW10CTED4). QXWA. QXWB
Nett Weight: 1.85kg
OEM Tools Ford: 303-393. 303-393/01. 303-376B. 303-651. 303-193. 303-1059. 303-732. 303-734. 303-735
OEM Tools Mazda: 303-732. 303-734. 303-735
OEM Tools PSA: 0194-A. 0194-C. 0194B
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands. Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only please refer to description and specification for full details of product**
