Product Details
＋

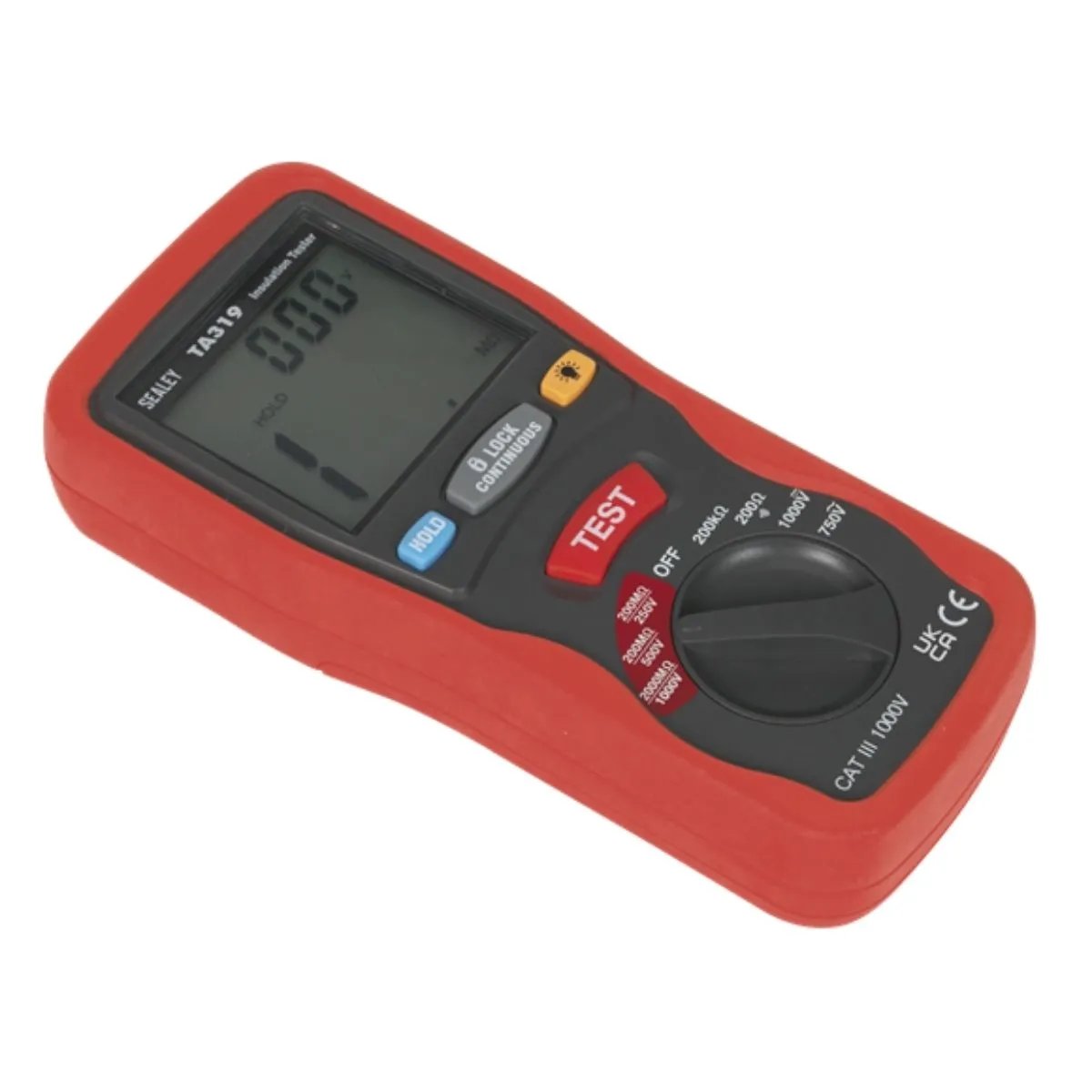

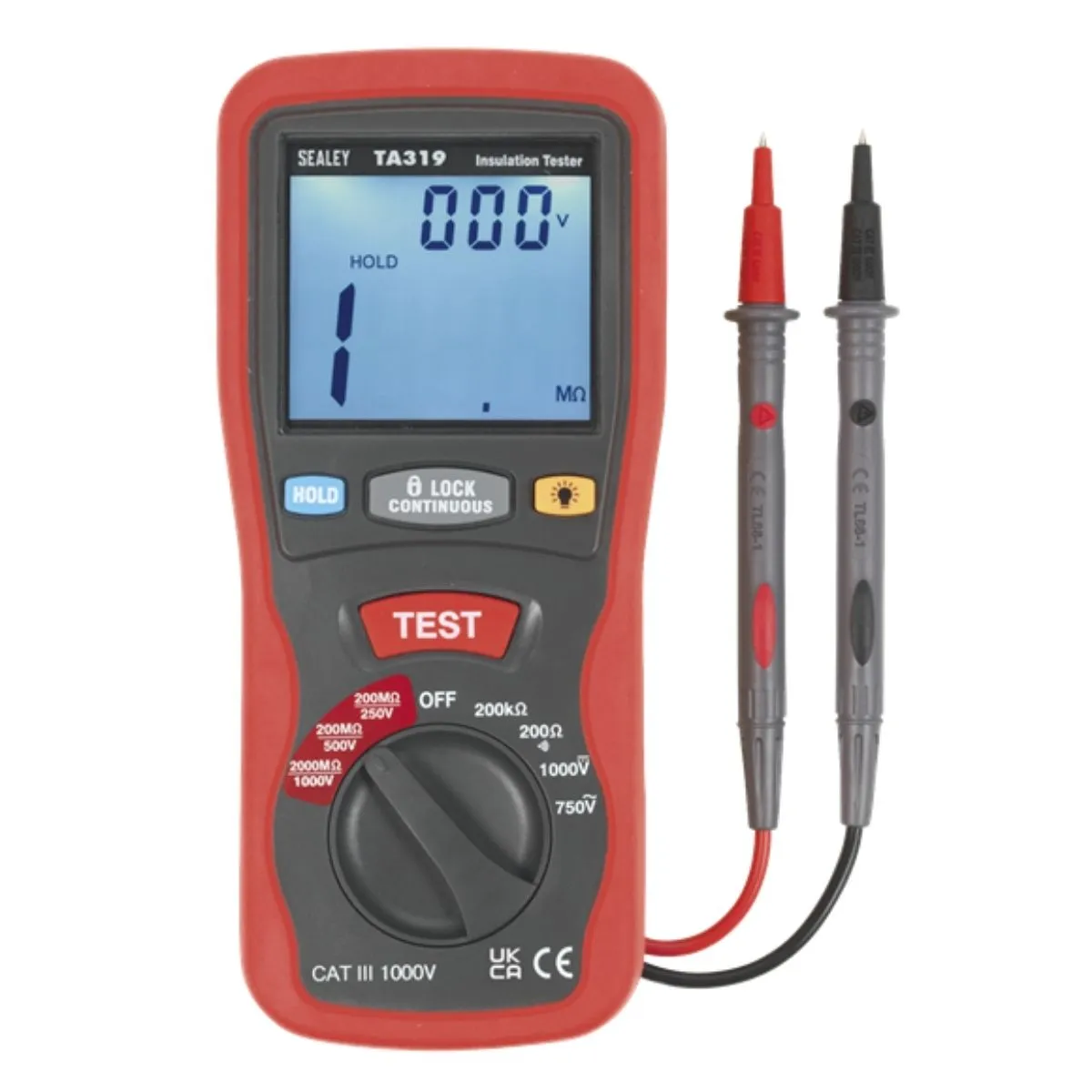

Sealey TA319 Digital Insulation Tester
Features:
Specially designed for testing insulation on high voltage cables.
Suitable for hybrid and electric vehicles.

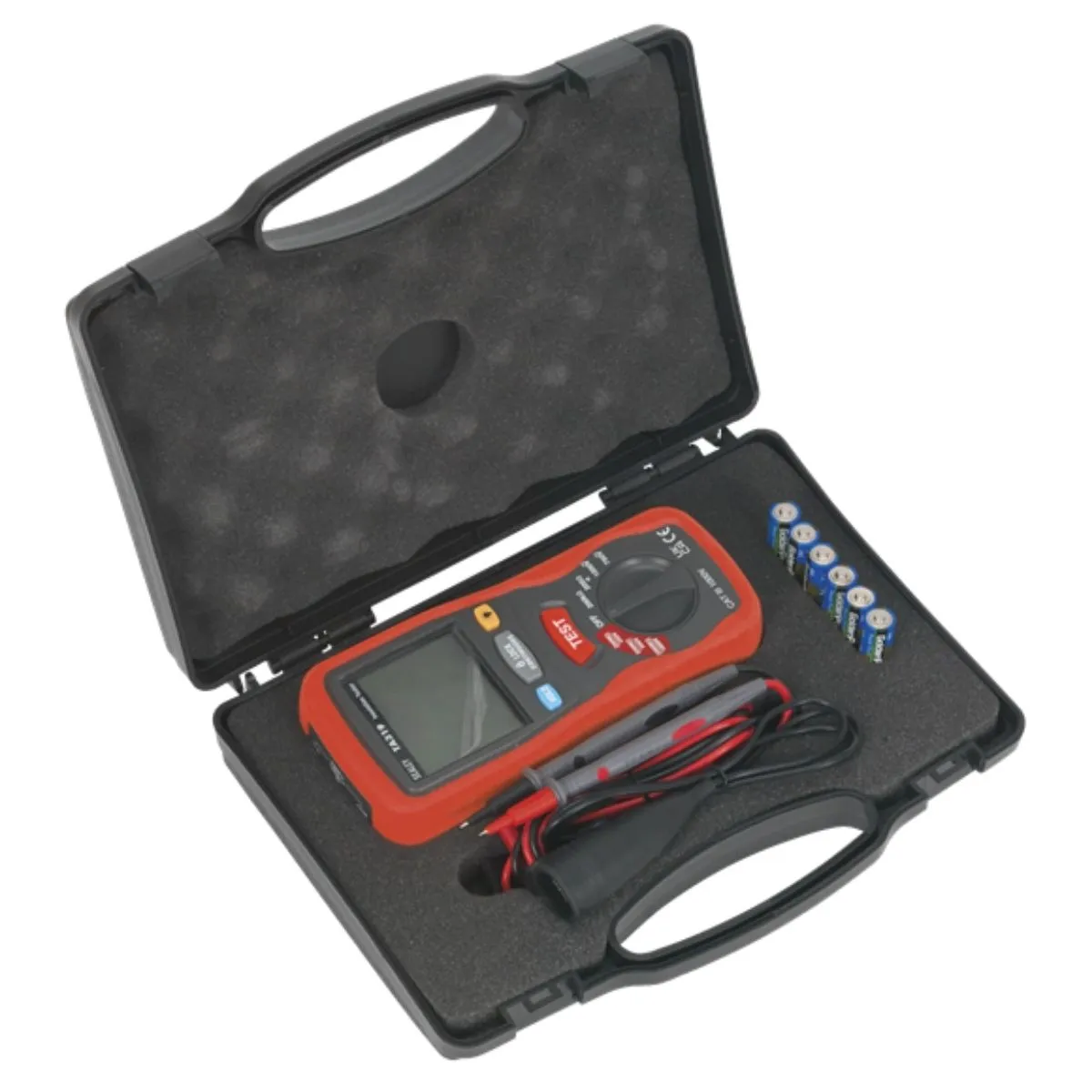

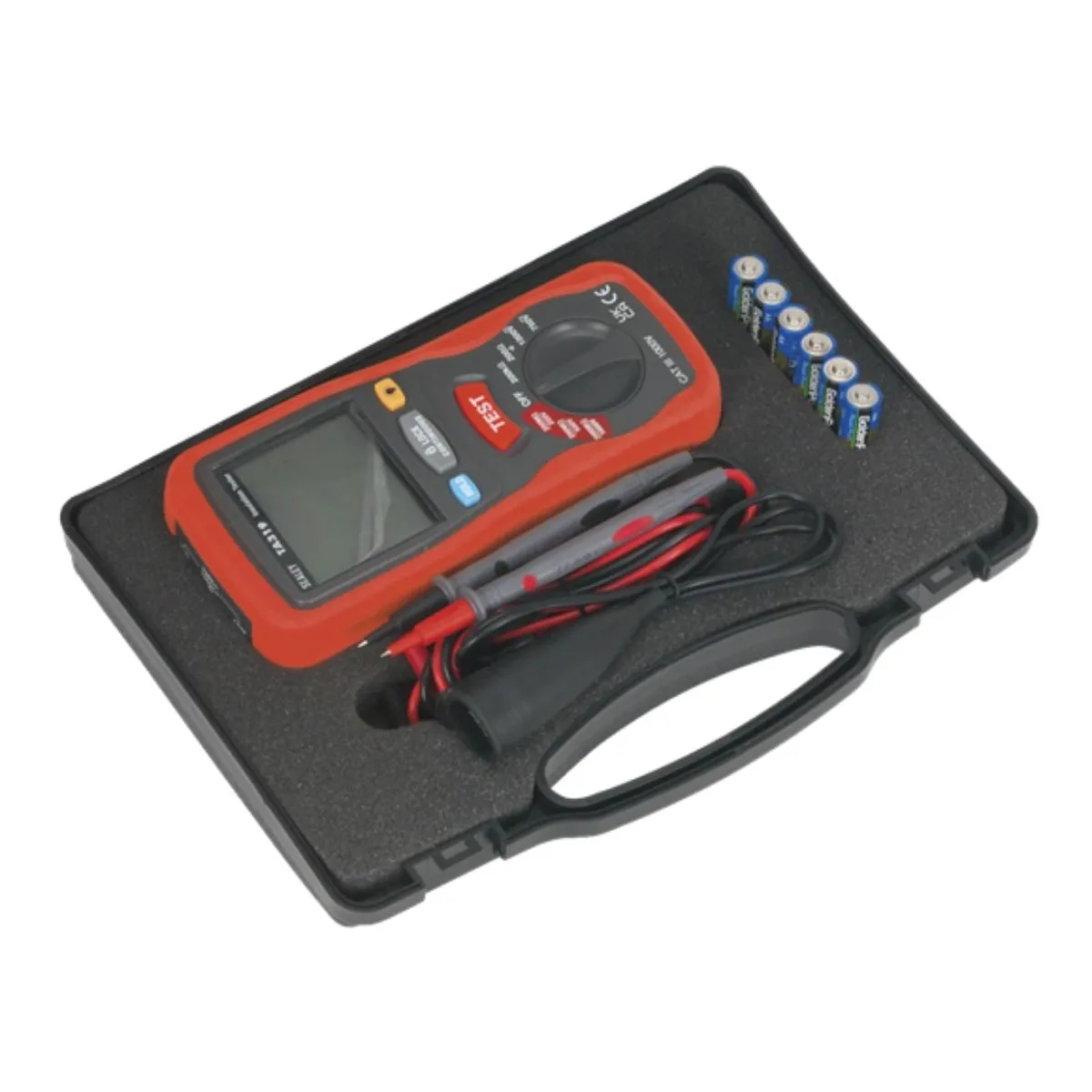

Supplied with test leads. batteries and storage case.
Conforms to EN61010 CAT III (1000V).
Specification:
Part Number: TA319
Barcode: 5054630019869
Brand: Sealey
Nett Weight: 1.29kg
Voltage AC: Range; 750V. Max Resolution; 1V. Accuracy; (1.2% 10-digits)
Voltage DC: Range; 1000V. Max Resolution; 1V. Accuracy; (0.8% 3-digits)
Resistance: Range; 200. 2000. Max Resolution; 0.1. 1. Accuracy; (1% 2-digits)
Insulation Resistance: Range; 200M. 2000M. Max Resolution; 100k-1M. Accuracy; (3.5% 5-digits)
Test Voltage: 250V/200M. 500V/200M. 1000V/2000M
Continuity Test: Active Sound Level; 40. Test Current; 200mA
Operating Temperature: 0C to 40C. (<80%R.H)
Storage Temperature: -10C to 60C. (<70%R.H)
Batteries: 6 x 1.5V (supplied)
Barcode: 5054630019869
Brand: Sealey
Nett Weight: 1.29kg
Voltage AC: Range; 750V. Max Resolution; 1V. Accuracy; (1.2% 10-digits)
Voltage DC: Range; 1000V. Max Resolution; 1V. Accuracy; (0.8% 3-digits)
Resistance: Range; 200. 2000. Max Resolution; 0.1. 1. Accuracy; (1% 2-digits)
Insulation Resistance: Range; 200M. 2000M. Max Resolution; 100k-1M. Accuracy; (3.5% 5-digits)
Test Voltage: 250V/200M. 500V/200M. 1000V/2000M
Continuity Test: Active Sound Level; 40. Test Current; 200mA
Operating Temperature: 0C to 40C. (<80%R.H)
Storage Temperature: -10C to 60C. (<70%R.H)
Batteries: 6 x 1.5V (supplied)
