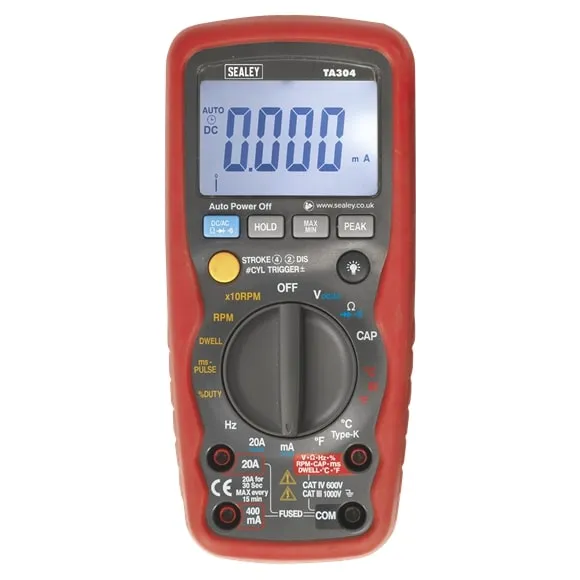

Sealey TA304 Digital Automotive Analyser 15 Function with IC/IR
Features:

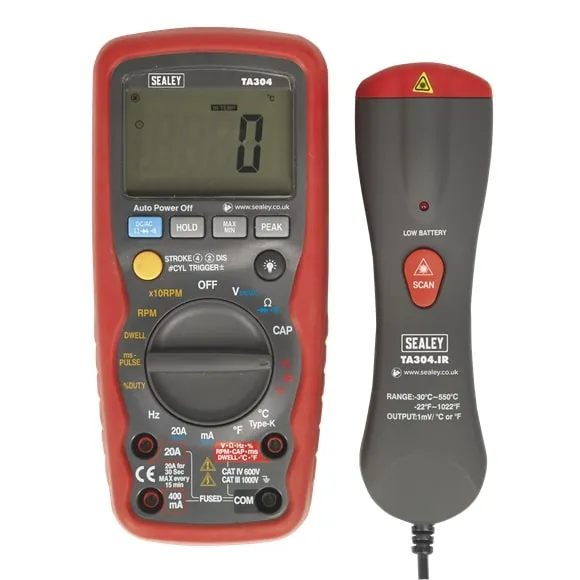

15-Function. auto-ranging automotive diagnostic multimeter with infrared thermometer attachment.
Combination digital/bar graph display gives accurate indication of component outputs.
Large. easy-to-read high contrast display with bright. white back light.
Workshop-tough. durable case with integral stand and auto power shut-off.

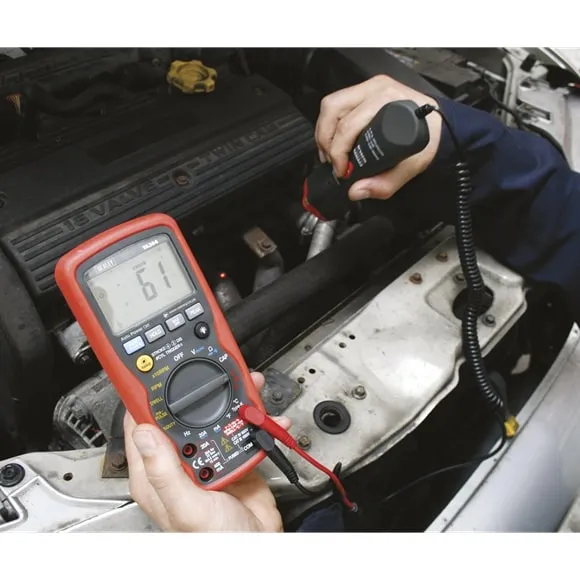

High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems.
Features auto-ranging and data-hold functions with overload protection on all ranges.
Includes relative functions including min./max. and peak hold.

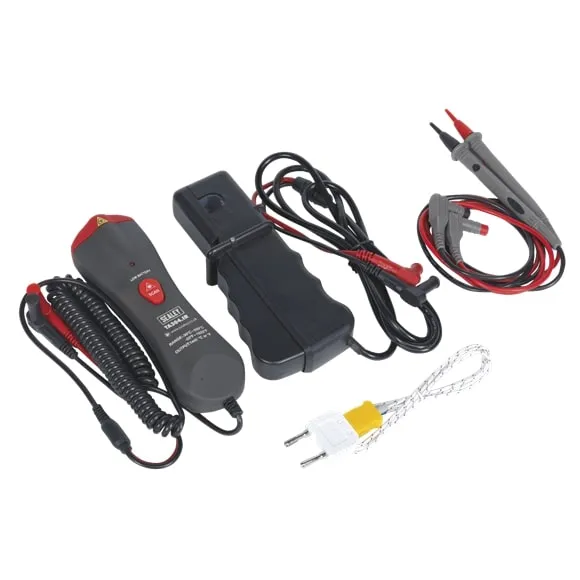

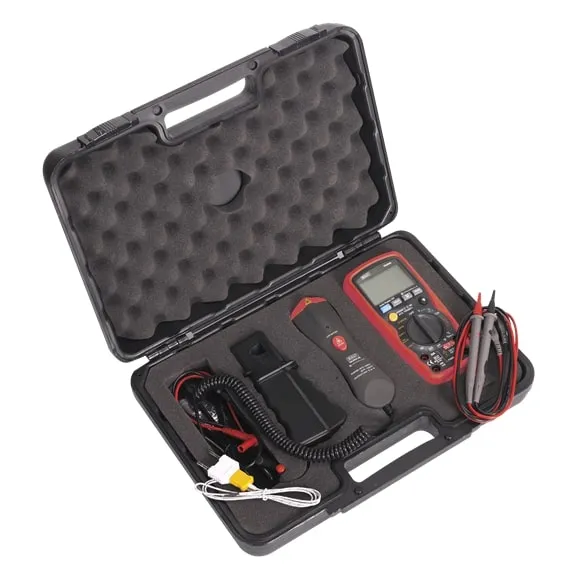

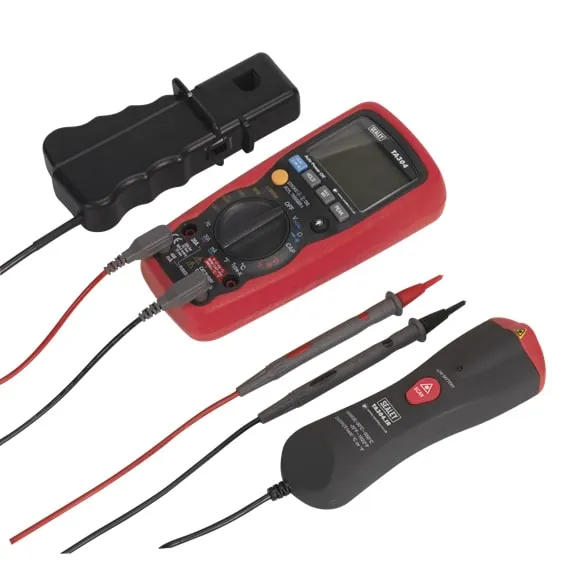

Supplied with inductive coupler. infrared temperature probe. test probes and thermocouple in storage case.
Specification:
Barcode: 5051747600683
Nett Weight: 360g
Tach (rpm): 2-10Cyl. 4-Stroke 600-4000 (x1)rpm. 600-12000 (x10)rpm
Dwell: 4Cyl 0-90. 5Cyl 0-72. 6Cyl 0-60. 8Cyl 0-45
AC Voltage: 400mV. 4V. 40V. 400V. 700V (Auto-Ranging)
DC Voltage: 400mV. 4V. 40V. 400V. 1000V (Auto-Ranging)
AC Current: 400A. 4000A. 40mA. 400mA. 4A. 20A (Auto-Ranging)
DC Current: 400A. 4000A. 40mA. 400mA. 4A. 20A (Auto-Ranging)
Capacitance: 40nF. 400nF. 4F. 40F. 400F. 4mF. 40mF (Auto-Ranging)
Frequency: 0.001Hz-9.99MHz (Auto-Ranging)
Duty Cycle:0.1-99.9%
Pulse Width: 0.1-10ms
Resistance: 400. 4k. 40k. 400k. 4M. 40M (Auto-Ranging)
Continuity: <30 Continuity Buzzer 2kHz
Temperature: -20 to 760C. -4 to 1400F
IR Temperature: -20 to 280C. -4 to 536F
Diode Check: Yes
Transistor Test: No
Back Light: Yes
Bar Graph Display: Yes
Display Hold: Yes
Auto-Ranging: Yes
Inductive Coupler: Yes
PC Interface: No
Digits Height: 20mm
Auto Power Off: Yes
Low Battery Indicator: Yes
Batteries (supplied): 9V (PP3)
Hi-Impact Case: Yes
Size (L x W x D): 182 x 82 x 55mm
