Metabo 18V 11Piece Brushless Combo Kit with 3 x 5.2Ah Batteries & Charger T4TKIT-17618
Kit Content:
Metabo SB 18 LT BL Combi Hammer Drill
Metabo SSD 18 LT 200 BL Impact Driver
Metabo SXA 18 LTX 125 BL Random Orbital Sander
Metabo KS 18 LTX 57 BL Circular Saw
Metabo W 18 L BL 9-125 Angle Grinder
Metabo ST 18 LT 130 BL Jigsaw
Metabo FMV 18 LTX BL 8 Trim Router
Metabo SSEP 18 LT BL Sabre Saw
Metabo SSW 18 LT 300 BL Impact Wrench
Metabo BH 18 LTX BL 16 SDS Rotary Hammer
Metabo ULA 14.4-18 LED Torch
3 x LiPOWER 5.2Ah Battery
1 x ASC 145 Charger
9 x Metaboxes
Features:
Metabo SB 18 LT BL Combi Hammer Drill:
Brushless hammer drill with compact design for universal and demanding applications
Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
High-performance impact mechanism for optimum drilling performance
Spindle with hexagonal recess for screwdriver bits for working without chuck
Integrated working light to illuminate the contact area
With handy belt hook and bit case which can be fixed either on the right or left side
Battery packs with capacity display for checking the charge status
Ultra - M technology for highest performance . gentle charging. optimum energy utilization and long service life.

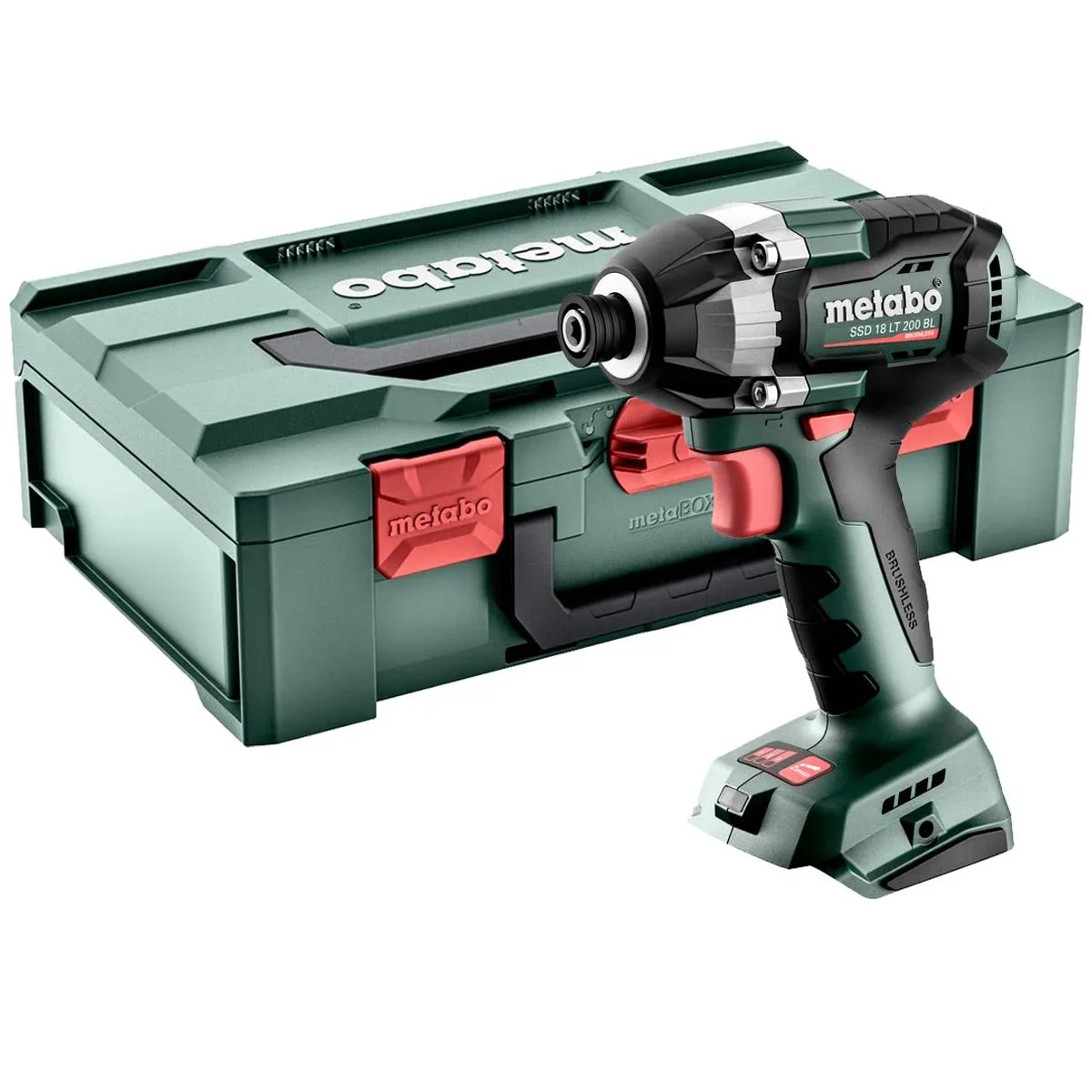

Metabo SSD 18 LT 200 BL Impact Driver:
Compact cordless impact driver with 1/4 hexagon socket and 200 Nm
Unique Metabo brushless motor for quick work progress and highest efficiency for any application
Three speed/torque levels for a varied range of applications
Integrated work light for illumination of the work area
Robust die cast aluminium gear housing for optimum heat dissipation and durability
Handy belt hook. can be fixed either on the right or left side
With metaBOX. the intelligent solution for transport and storage

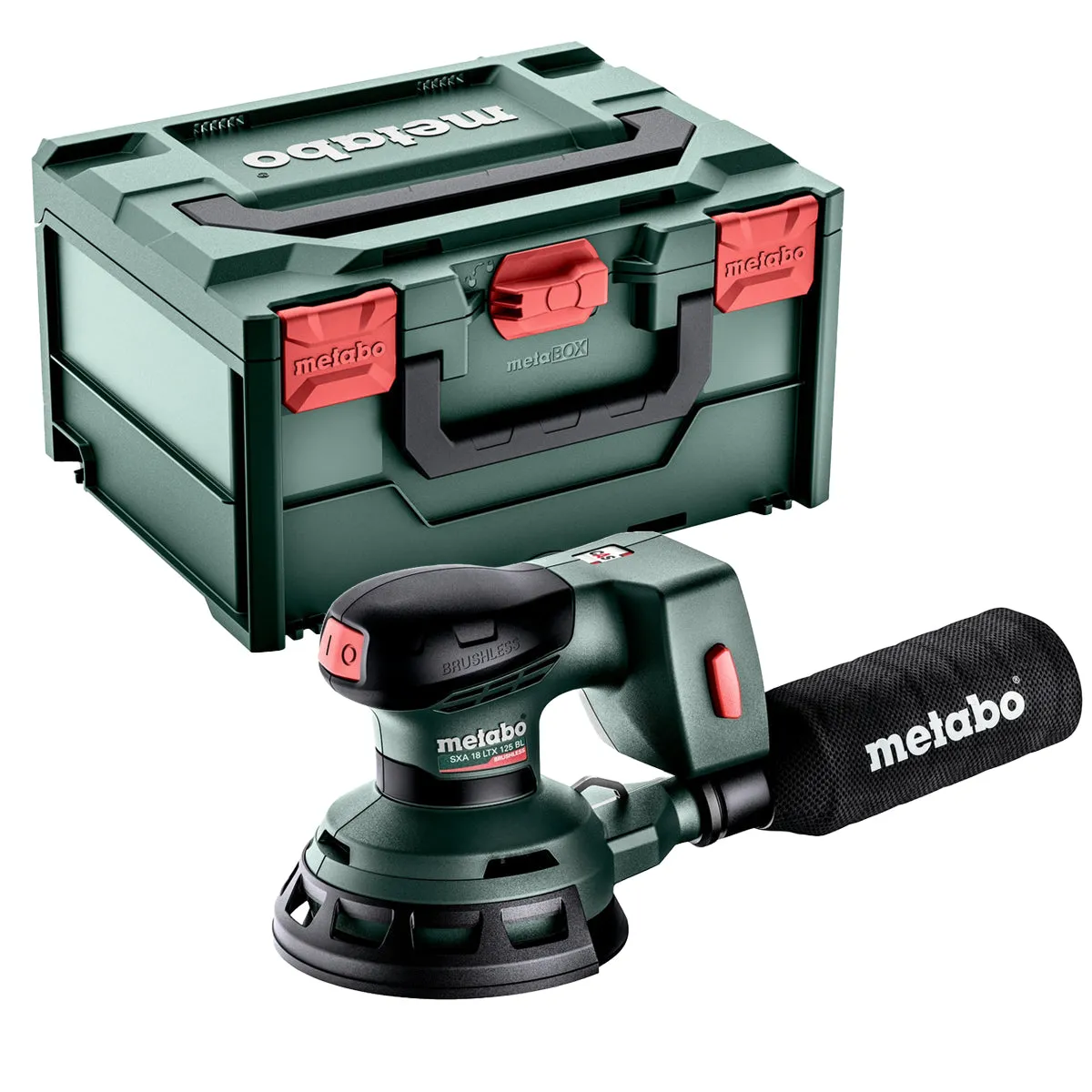

Metabo SXA 18 LTX 125 BL Random Orbital Sander:
Flat cordless random orbital sander with ergonomic design and low weight for low-fatigue working
Comfortable guidance of the sander close to the surface thanks to the low overall height
Low-vibration working thanks to smooth running operation
Grip area with non-slip soft-grip surface
Soft start minimises surface damage when placing the machine on the work surface
Unique Metabo brushless motor highest efficiency when grinding. also in continuous mode
Infinitely variable speed control for working with different materials
Multi-hole sanding pad for effective extraction and a longer service life of the sanding medium
With easy to empty textile dust bag for working without extraction facilities
Can be connected to an all-purpose vacuum cleaner with the coupling bush 630798000
Motor and plate brake permits quick placing down of the machine after use
Removable protector protects adjacent surfaces and increases the service life of the sanding pad
With attachment point for tool safety straps for working at great heights
With metaBOX. the intelligent solution for transport and storage

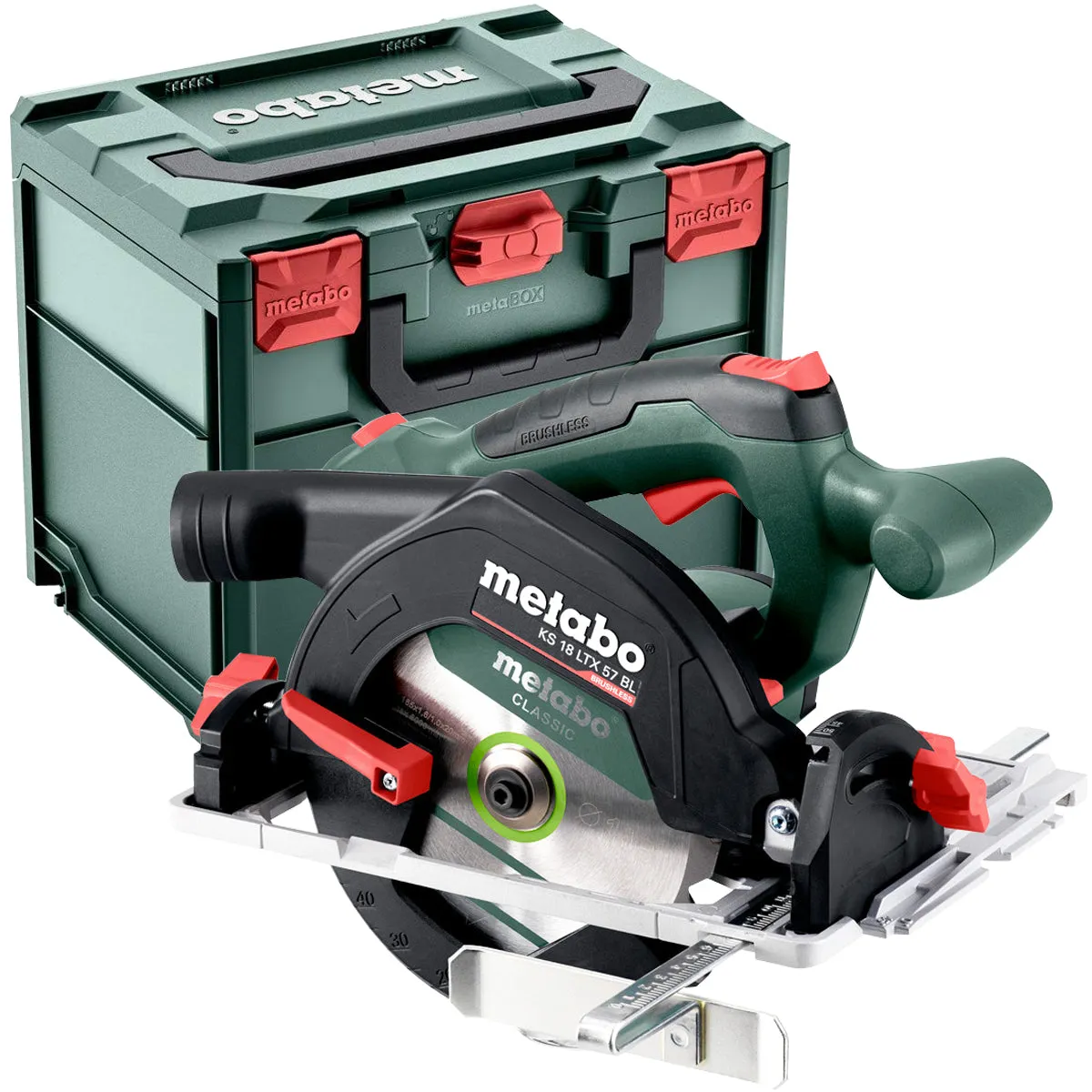

Metabo KS 18 LTX 57 BL Circular Saw:
Powerful. light. cordless circular saw for universal use on construction sites
Powerful Brushless motor for quick work progress and highest efficiency
Aluminium base plate can be directly used on guide rails from Metabo and Mafell. Bosch. Festool. Makita. HiKOKI. Hilti and other manufacturers
Fast. precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
Fast brake stops the saw blade quickly and improves safety
Accurately angled bevel cuts down to 50. with handy snap-in point at 45
0 position re-adjustable for highest cutting precision
Clearly visible cutting indicator for precise sawing after initial cut
Handle with non-slip soft-grip surface for safe guidance
Lower weight and compact. ergonomic design
Many brands. one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands
Metabo W 18 L BL 9-125 Angle Grinder:
Service-free Brushless motor with highest efficiency and maximum handiness
Slim design for low-fatigue working
Tool-free adjustable guard; twist-proof
Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
Overload protection: protects the motor from overheating
Electronic soft start for smooth start-up
Restart protection: prevents unintentional start-up after battery pack change
Many brands. one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands

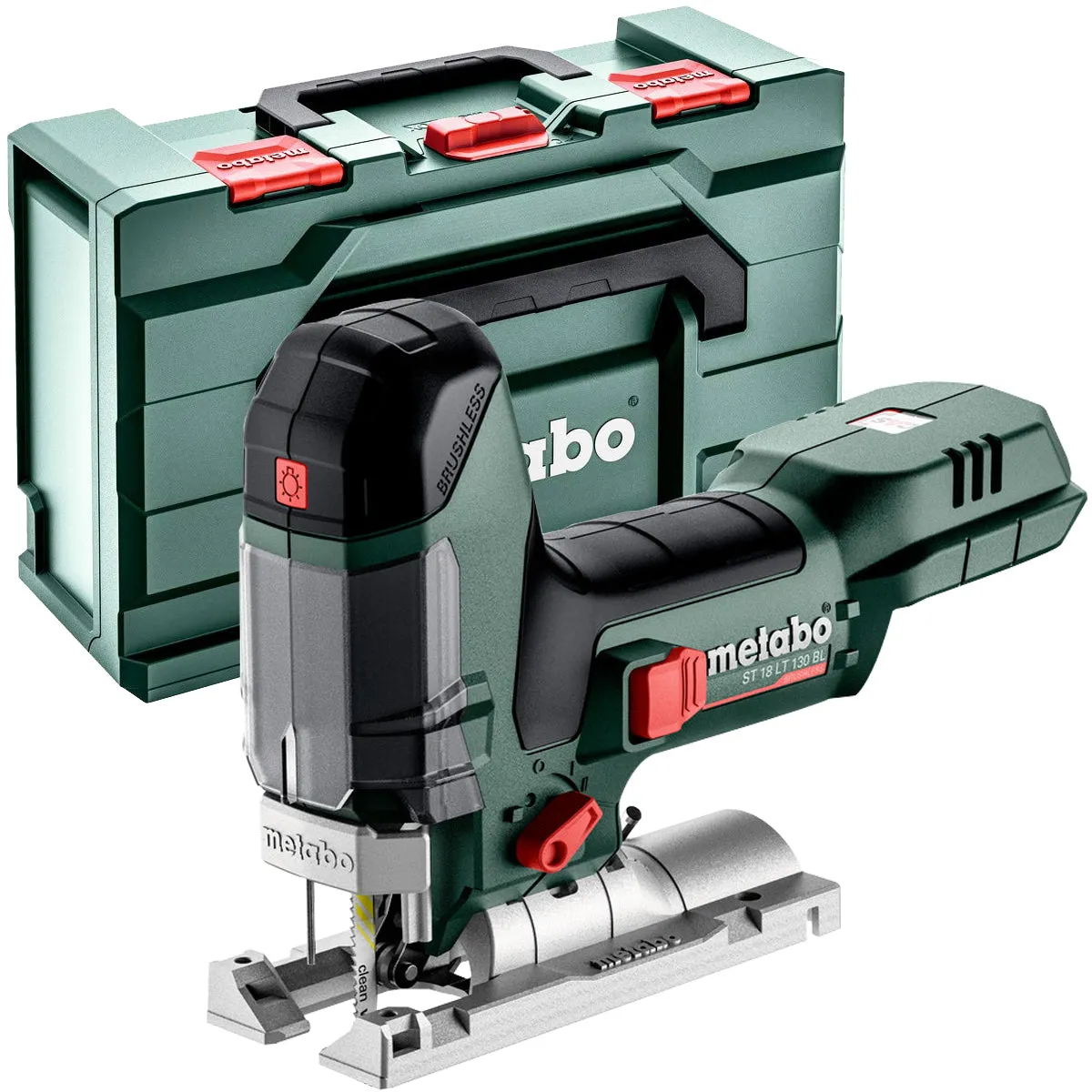

Metabo ST 18 LT 130 BL Jigsaw:
The versatile one for interior development and assembly: compact cordless jigsaw with powerful Brushless motor for fast. precise cuts
Best ergonomics in all working positions and soft-grip surface for perfect handling and safe guidance of the saw
Powerful Brushless motor for quick work progress and highest efficiency
Metabo Quick for changing saw blades without tools and with automatic ejection
Efficient chip blowing function for clear view of the cutting line
Integrated LED work light. can be switched off for cuts from below without getting blinded by the light
Restart protection: prevents unintentional start-up after battery pack change
Extraction possibility by means of connecting an all-purpose vacuum cleaner
With metaBOX. the intelligent solution for transport and storage

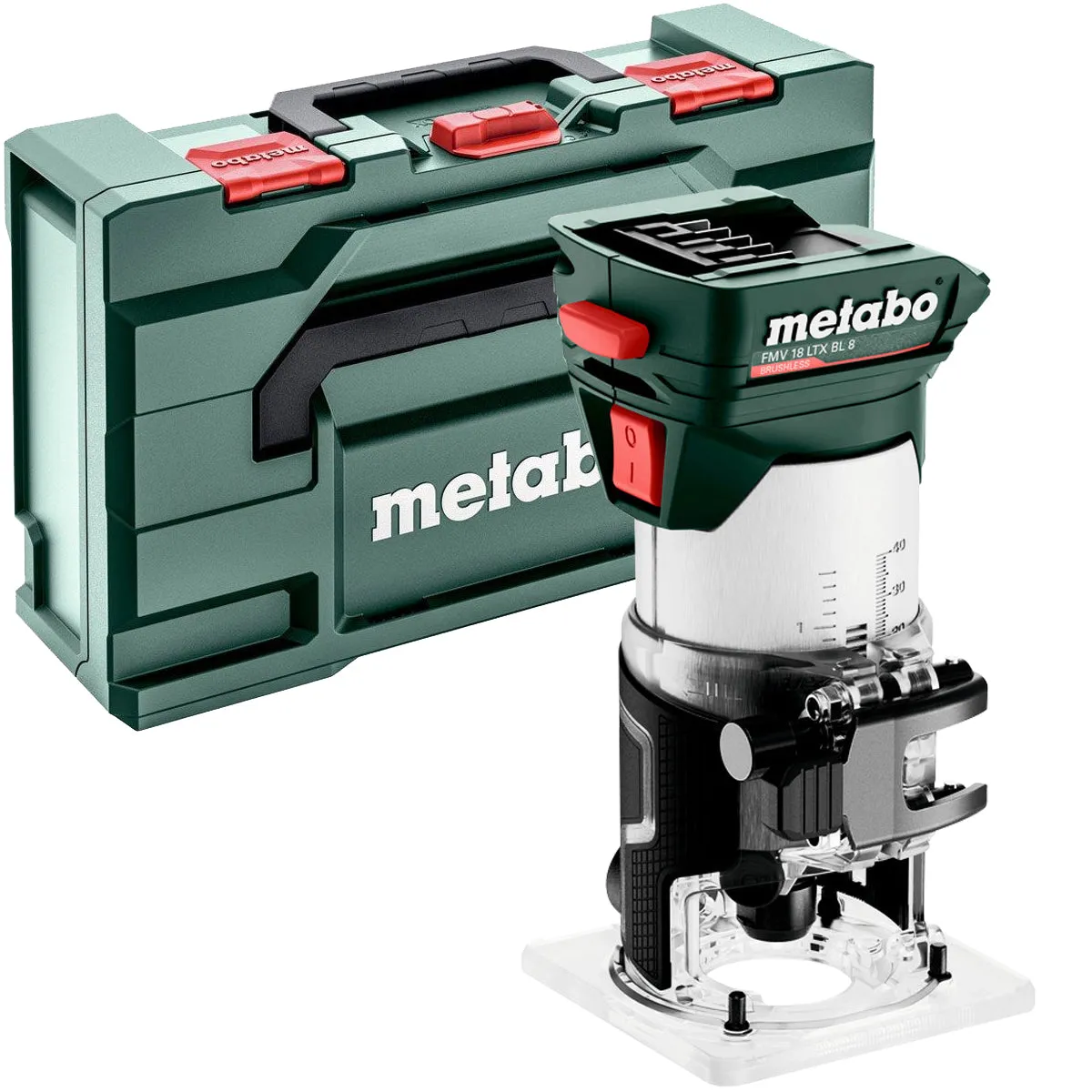

Metabo FMV 18 LTX BL 8 Trim Router:
Light. compact cordless trim router for single-handed profile cutting. trimming and cutting of grooves
Powerful Brushless motor for excellent cutting speed in wood and wood like materials
Precise. stepless depth adjustment and fixing of the motor unit using rack jacks
Variable speed control for speeds adapted to the materials for any application
Optimal ergonomics and a strategically positioned switch layout for maximum comfort. even during single-handed operation.
Transparent baseplate for maximum view of the router bit and workpiece
Hardened and ground interchangeable collet chuck for precise concentricity of router bits
Spindle lock for easy router bit change
Restart protection: prevents unintentional start-up after power supply interruption
Overload protection: protects the motor from overheating
Equipped for many application: Parallel guide / rip fence. template follower. roller guide and suction adapter.

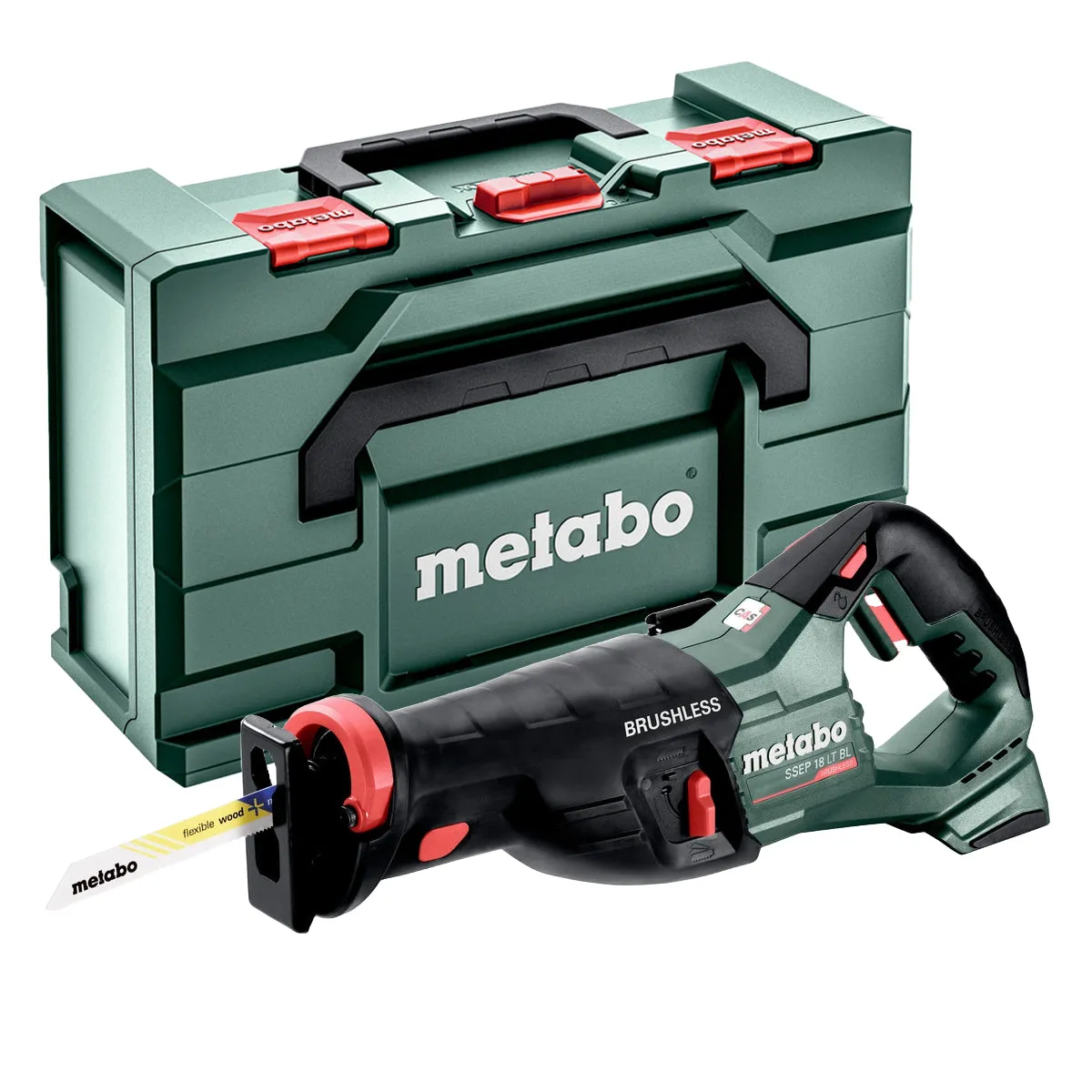

Metabo SSEP 18 LT BL Sabre Saw:
Powerful sabre saw with angled soft grip handle for high working comfort
Unique Metabo brushless motor for quick work progress and highest efficiency for any application
Variospeed (V) Electronics for working with customised stroke rates for the materials used
Selectable pendulum stroke for optimum sawing performance
Saw blade rotatable by 180 for working comfortably overhead
Metabo Quick for changing saw blades without tools
Depth guide can be adjusted without tools for ideal utilisation of the saw blade and diverse applications such as plunge cuts
Integrated LED work light for optimum illumination of the cutting line
Free hands in the work breaks thanks to practical scaffolding hook
Wide range of uses thanks to the adapted Metabo saw blade range
Many brands. one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands

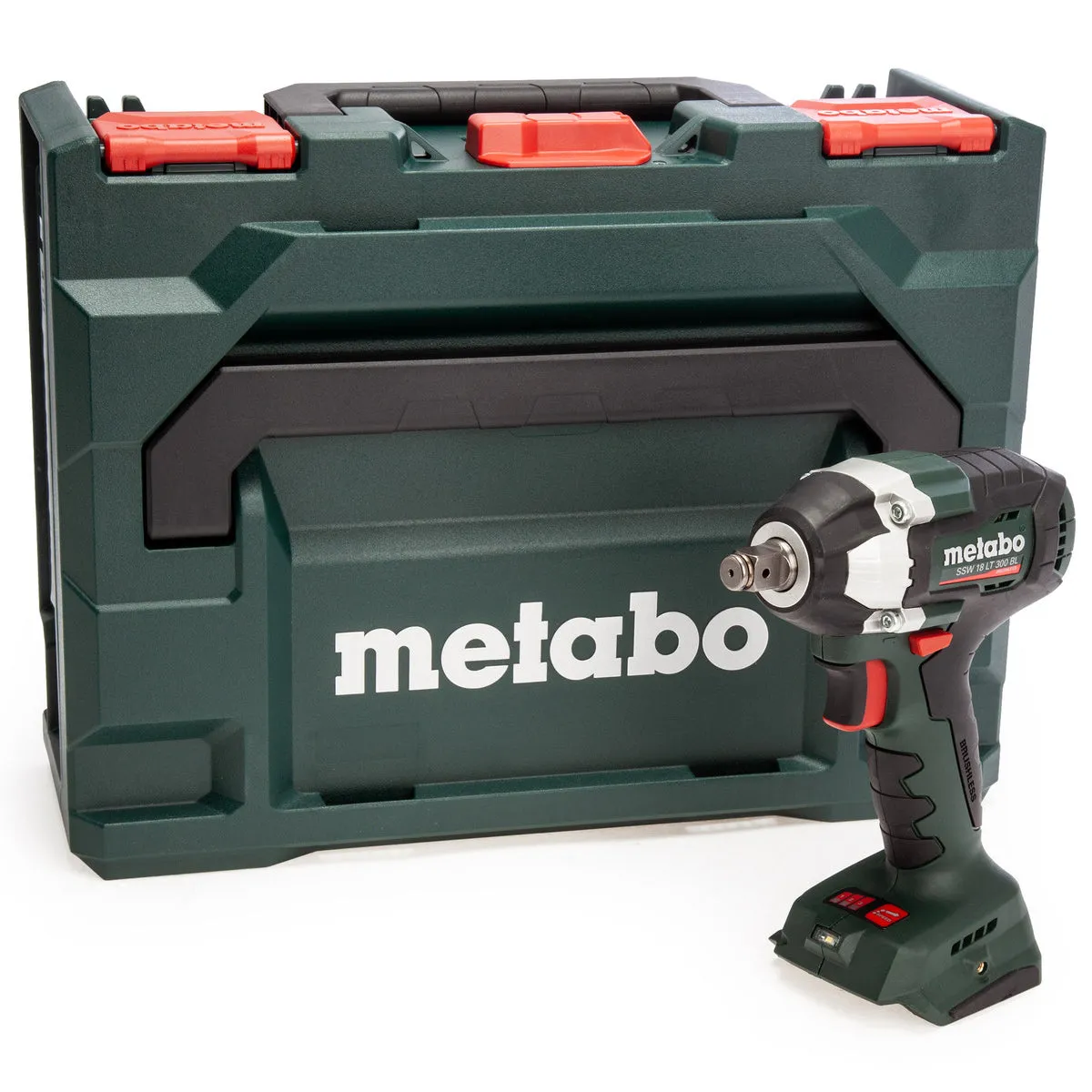

Metabo SSW 18 LT 300 BL Impact Wrench:
Compact cordless impact driver with 1/2 male square and 300 Nm
Unique Metabo brushless motor for quick work progress and highest efficiency for any application
Three speed/torque levels for a varied range of applications
Integrated work light for illumination of the work area
Robust die cast aluminium gear housing for optimum heat dissipation and durability
Handy belt hook. can be fixed either on the right or left side
With metaBOX. the intelligent solution for transport and storage

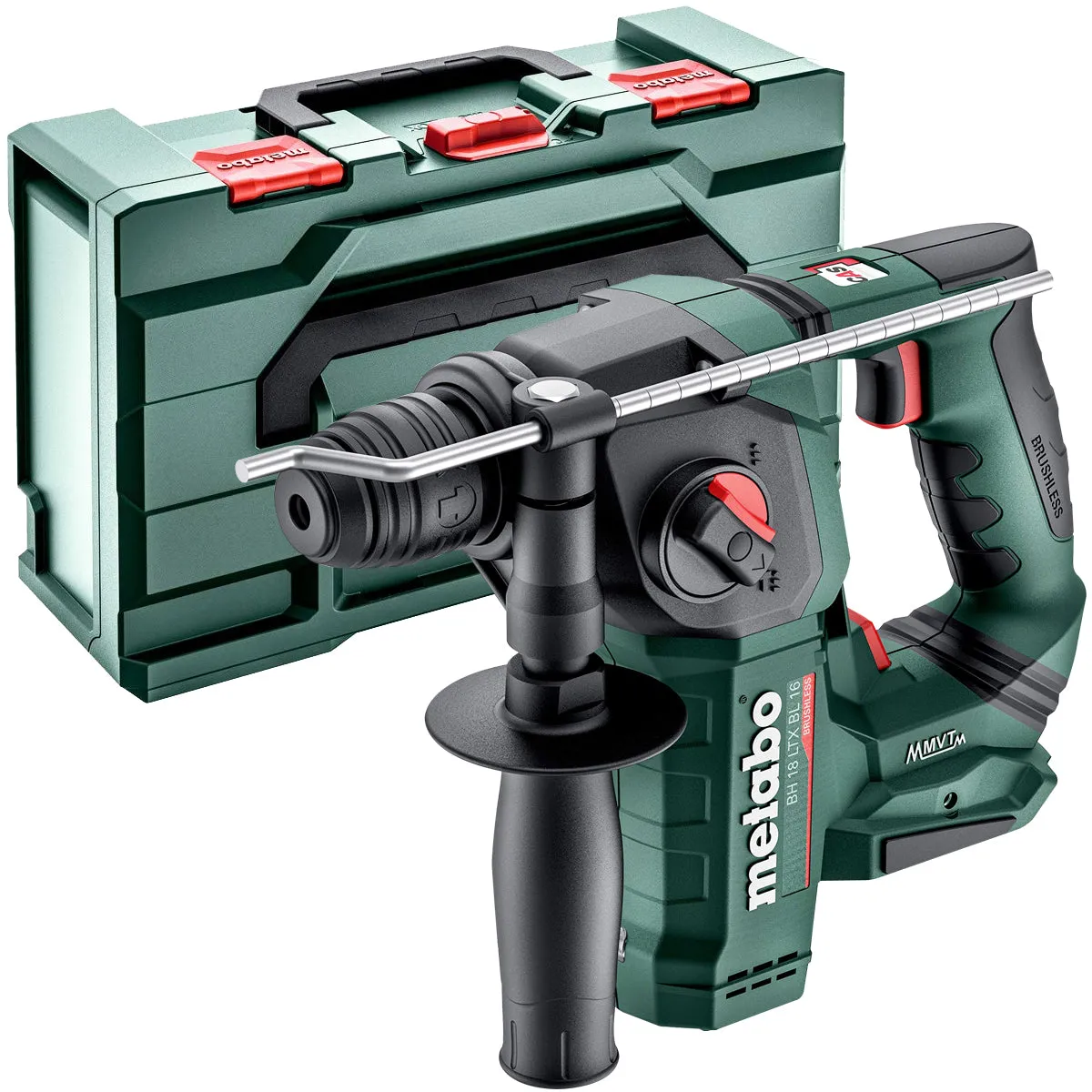

Metabo BH 18 LTX BL 16 SDS Rotary Hammer:
Very lightweight. compact cordless hammer with brushless motor for low-fatigue drilling in any working position
Maximum drill performance. efficiency and service life thanks to brushless technology and high-performance hammer action
Rotary hammer with 2 functions: hammer drilling and drilling
Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds. which remain constant under load
Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly
LED work light for optimum view of the drilling site
Many brands. one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands

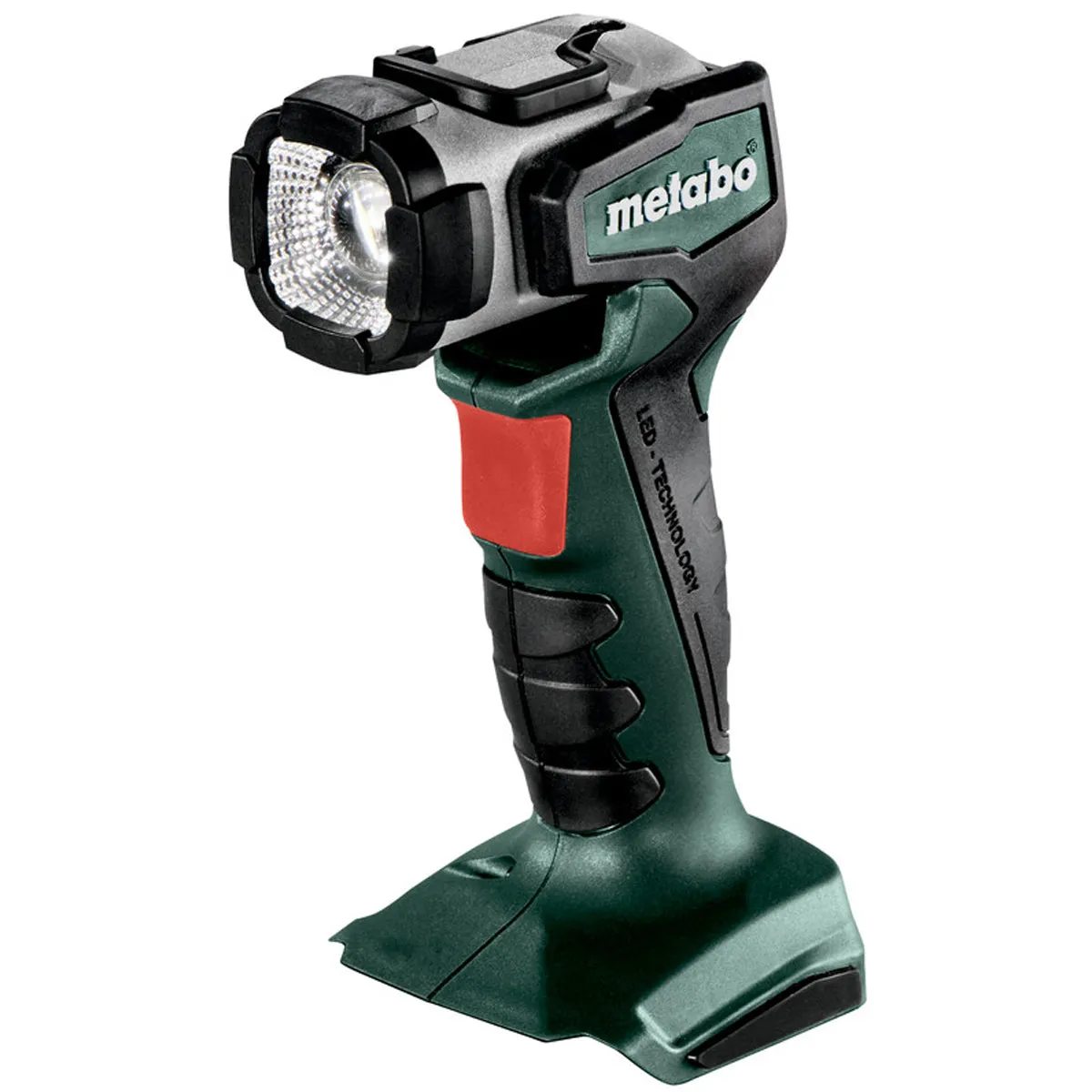

Metabo ULA 14.4-18 LED Torch:
Powerful LED portable lamp for uniform. bright illumination of the working area
Compact and handy for versatile use
Lamp head can be tilted and locked in 12 positions
Robust aluminium die-cast housing for use on construction sites
Operation with all Li-Power and LiHD slide-on 14.4 and 18 Volt battery packs
Swivelling hook for suspending the lamp
Comes With:
3 x LiPOWER 5.2Ah Battery
1 x ASC 145 Charger
9 x Metaboxes
Product Specification:
Metabo SB 18 LT BL Combi Hammer Drill:
Part Number: 602316840
Battery voltage: 18 V
Maximum torque - soft: 34 Nm
Maximum torque. hard: 60 Nm
Adjustable torque: 0.7 - 8 Nm
Drill- masonry: 13 mm
Drill steel: 13 mm
Drill- soft wood: 38 mm
No-load speed: 600 / 0 - 2100 rpm
Maximum impact rate: 31950 bpm
Chuck capacity: 1.5 - 13 mm
Vibration:
Drilling in metal: 3.4 m/s
Uncertainty of measurement K: 1.5 m/s
Impact drilling concrete: 17 m/s
Uncertainty of measurement K: 1.5 m/s
Noise emission:
Sound pressure level: 91 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)
Metabo SSD 18 LT 200 BL Impact Driver:
Barcode: 4061792217232
Part number: 602397840
Battery Voltage: 18V
Max. Screw Size: M16
Max. No-Load Speed: 3050 rpm
Max. Impact Rate: 3750 bpm
Max. Torque: 200 Nm
Speed/Torque Levels: 3
Bit Retainer: Hexagon Recess 1/4 (6.35 mm)
Metabo SXA 18 LTX 125 BL Random Orbital Sander:
Part Number: 600146840
Battery voltage: 18V
Diameter of backing pad: 125 mm
No-load speed: 4000 - 10000 rpm
Orbital frequency with no load: 8000 - 20000 rpm
Orbit diameter: 2 mm
Vibration
Surface grinding: 1.1 m/s
Uncertainty of measurement K: 1.5 m/s
Noise emission
Sound pressure level: 67 dB(A)
Sound power level (LwA): 78 dB(A)
Uncertainty of measurement K: 3 dB(A)
Metabo KS 18 LTX 57 BL Circular Saw:
Part Number: 611857840
Type of battery pack: LiPOWER / LiHD
Battery voltage: 18V
Swivel range from / to: 0 / 50
Adjustable cutting depth: 0 - 57 mm
Maximum cutting depth at 90: 57 mm
Maximum cutting depth at 45: 43 mm
Max. cutting depth with guide rail: 52 mm
Saw blade x bore: 165 x 20 mm
No-load speed: 5000 rpm
Max. cutting speed: 43 m/s
Sawing chipboards: 1 m/s
Uncertainty of measurement K: 1.5 m/s
Sound pressure level: 94 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)
Metabo W 18 L BL 9-125 Angle Grinder:
Part Number: 602374850
Battery voltage: 18V
Disc-: 125 mm
Max. cutting depth: 34 mm
No-load speed: 10000 rpm
Spindle thread: M 14
Handle circumference: 183 mm
Vibration
Surface grinding: 5 m/s
Uncertainty of measurement K: 1.5 m/s
Grinding with sandpaper: 2.5 m/s
Uncertainty of measurement K: 1.5 m/s
Noise emission
Sound pressure level: 86 dB(A)
Sound power level (LwA): 97 dB(A)
Uncertainty of measurement K: 3 dB(A)
Metabo ST 18 LT 130 BL Jigsaw:
Part Number: 601054840
Type of battery pack: LiHD
Battery voltage: 18V
Cutting depth wood: 130 mm
Cutting depth NF metal: 35 mm
Cutting depth sheet steel: 10 mm
Swivel range from / to: - 45 / 45
Pendulum stroke levels: 4
Strokes in idle: 1000 - 3500 rpm
Saw blade stroke: 22 mm
Sawing wood: 9.5 m/s
Uncertainty of measurement K: 1.5 m/s
Sawing metal: 10.5 m/s
Uncertainty of measurement K: 1.5 m/s
Sound pressure level: 90 dB(A)
Sound power level (LwA): 98 dB(A)
Uncertainty of measurement K: 5 dB(A)
Metabo FMV 18 LTX BL 8 Trim Router:
Part Number: 601742830
Battery voltage: 18V
Maximum stroke height: 40 mm
No-load speed: 4800 - 29000 rpm
Collet chuck bore: 1/4
Sound pressure level: 81 dB(A)
Sound power level (LwA): 89 dB(A)
Uncertainty of measurement K: 3 dB(A)
Metabo SSEP 18 LT BL Sabre Saw:
Part Number: 601617840
Battery voltage: 18V
Strokes in idle: 0 - 3000 rpm
Saw blade stroke: 32 mm
Vibration
Sawing chipboards: 14.52 m/s
Uncertainty of measurement K: 1.5 m/s
Sawing wooden beam: 14.33 m/s
Uncertainty of measurement K: 1.5 m/s
Noise emission
Uncertainty of measurement K: 5 dB(A)
Metabo SSW 18 LT 300 BL Impact Wrench:
Part Number: 602398840
Battery voltage: 18V
Max. screw size: M16
Max. no-load speed: 3050 rpm
Maximum impact rate: 3900 bpm
Maximum torque: 300 Nm
Max. loosening torque: 480 Nm
Speed/torque levels: 3
Bit retainer: Male square 1/2 (12.70 mm)
Impact screwdriving: 13.8 m/s
Uncertainty of measurement K: 1.5 m/s
Uncertainty of measurement K: 3 dB(A)
Metabo BH 18 LTX BL 16 SDS Rotary Hammer:
Part Number: 600324840
Battery voltage: 18V
Max. single blow energy (EPTA): 1.3 J
Maximum impact rate: 5250 bpm
Drill- concrete with hammer drills: 16 mm
Drill- masonry with core bits: 68 mm
Drill steel: 13 mm
Drill- soft wood: 20 mm
No-load speed: 0 - 730 rpm
Bit retainer: SDS-plus
Hammer drilling concrete: 12.7 m/s
Uncertainty of measurement K: 1.5 m/s
Sound pressure level: 87 dB(A)
Sound power level (LwA): 98 dB(A)
Uncertainty of measurement K: 3 dB(A)
Metabo ULA 14.4-18 LED Torch:
Part number: 600368000
Voltage: 14.4V / 18V
Max. Luminous Flux: 280 lm
Max. Operation Time per Battery Charge:
14.4V / 2.0 Ah: 4.5h
14.4V / 4.0 Ah: 9h
18V / 2.0 Ah: 6.4h
18V / 4.0 Ah: 12.7h
18V / 5.2 Ah: 16.5h
18V / LiHD 3.1: 10h
18V / LiHD 5.5: 17.6h
18V / LiHD 6.2: 19.8h
**images for illustrative purposes only please refer to description and specification for full details of product**
