- Versatile Cutting Options
- Lightweight and Compact Design
- Enhanced Safety Features
- Efficient Dust Management

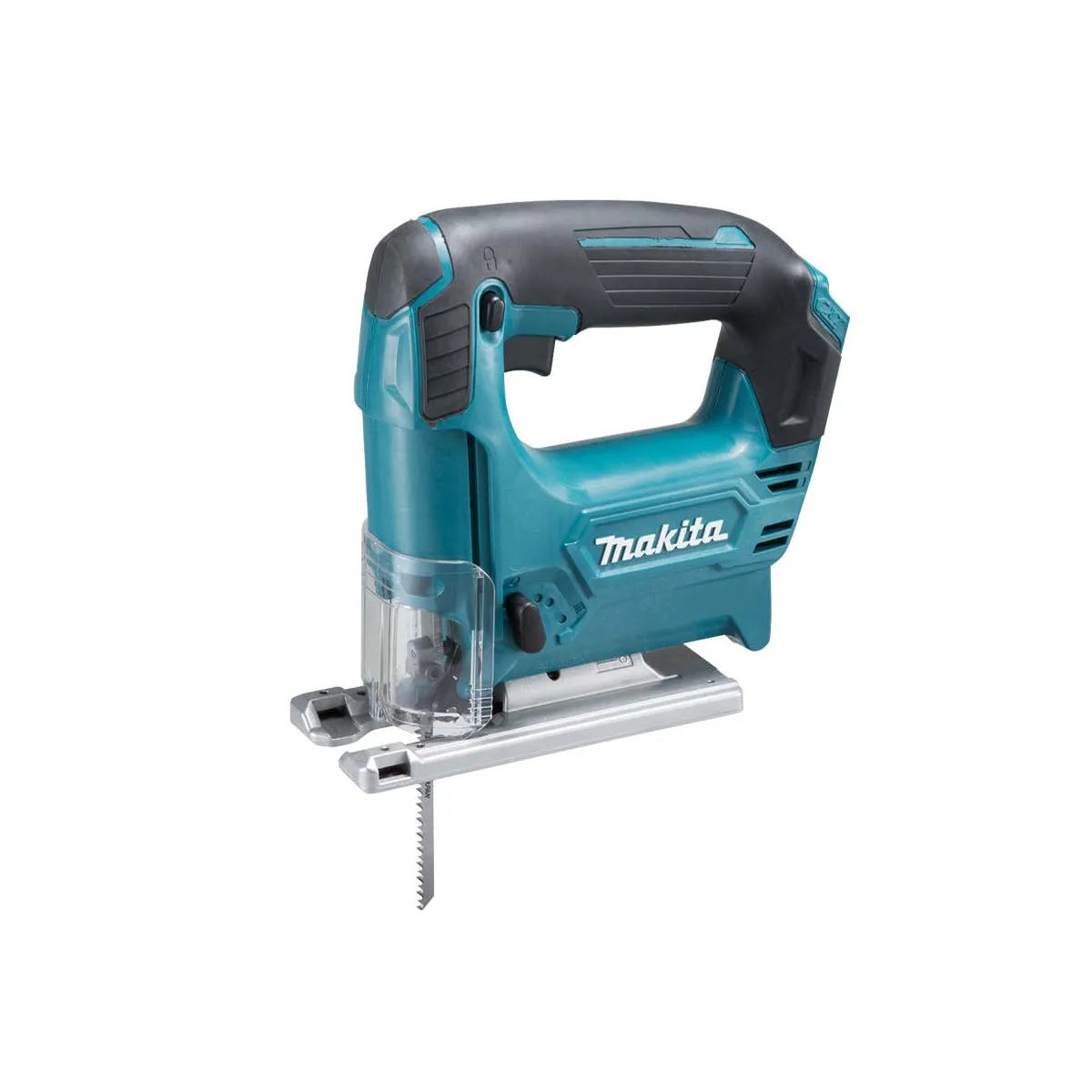

Makita JV101DWAE 12V max CXT Jigsaw With 2 x 2.0Ah Batteries. Charger & Carrying Case
This cordless top handle jigsaw features a compact design with three-stage pendulum action. adjustable speeds up to 2.900 RPM. and a cutting capacity of 65 mm in wood and 2 mm in steel. It's perfect for various applications. with added safety and dust management features.
Features:
Three-Stage Pendulum Action: Provides versatility for different cutting tasks.
Adjustable Engine Speed: Speed settings from 0 to 2.900 RPM to match material requirements.
Stroke Length: 18 mm for efficient cutting performance.
Max Cutting Capacity: Cuts up to 65 mm in wood and 2 mm in steel.
Tilting Base: Allows for bevel cuts from 0 to 45 for angled applications.
Compact and Lightweight Design: Reduces operator fatigue during extended use.
Dust Extraction Capability: Connects to a vacuum hose for a cleaner work environment.
Electric Brake: Enhances safety by quickly stopping the blade.
Battery Protection Circuit: Safeguards against overloading. over-discharging. and overheating for prolonged tool life.

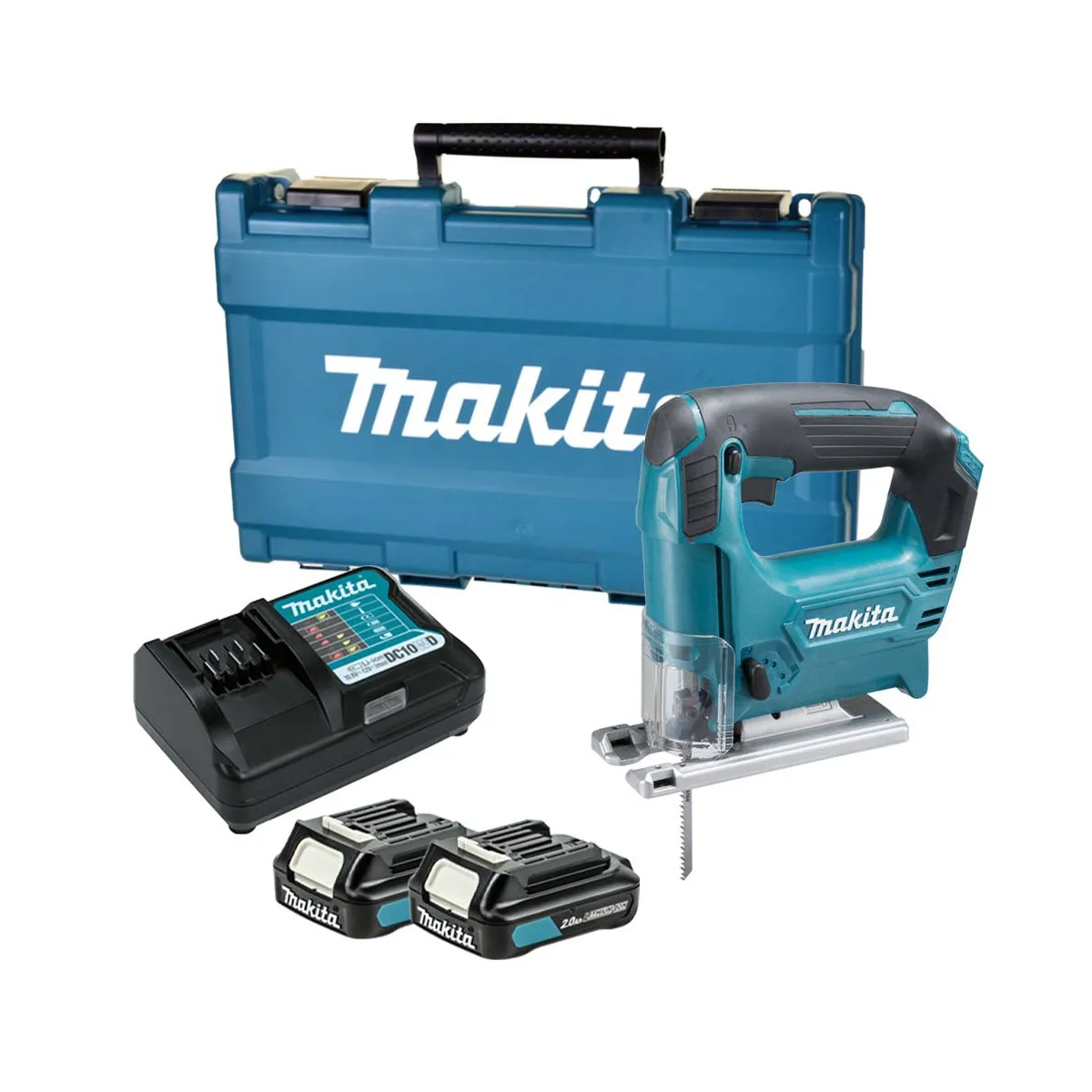

Comes With:
1 x Guide rule set ( 192732-4 )
1 x Hex Wrench 3Mm ( 783201-2 )
2 x Battery CXT 2.0 Ah ( BL1021B )
1 x Battery Charger CXT ( DC10WD )

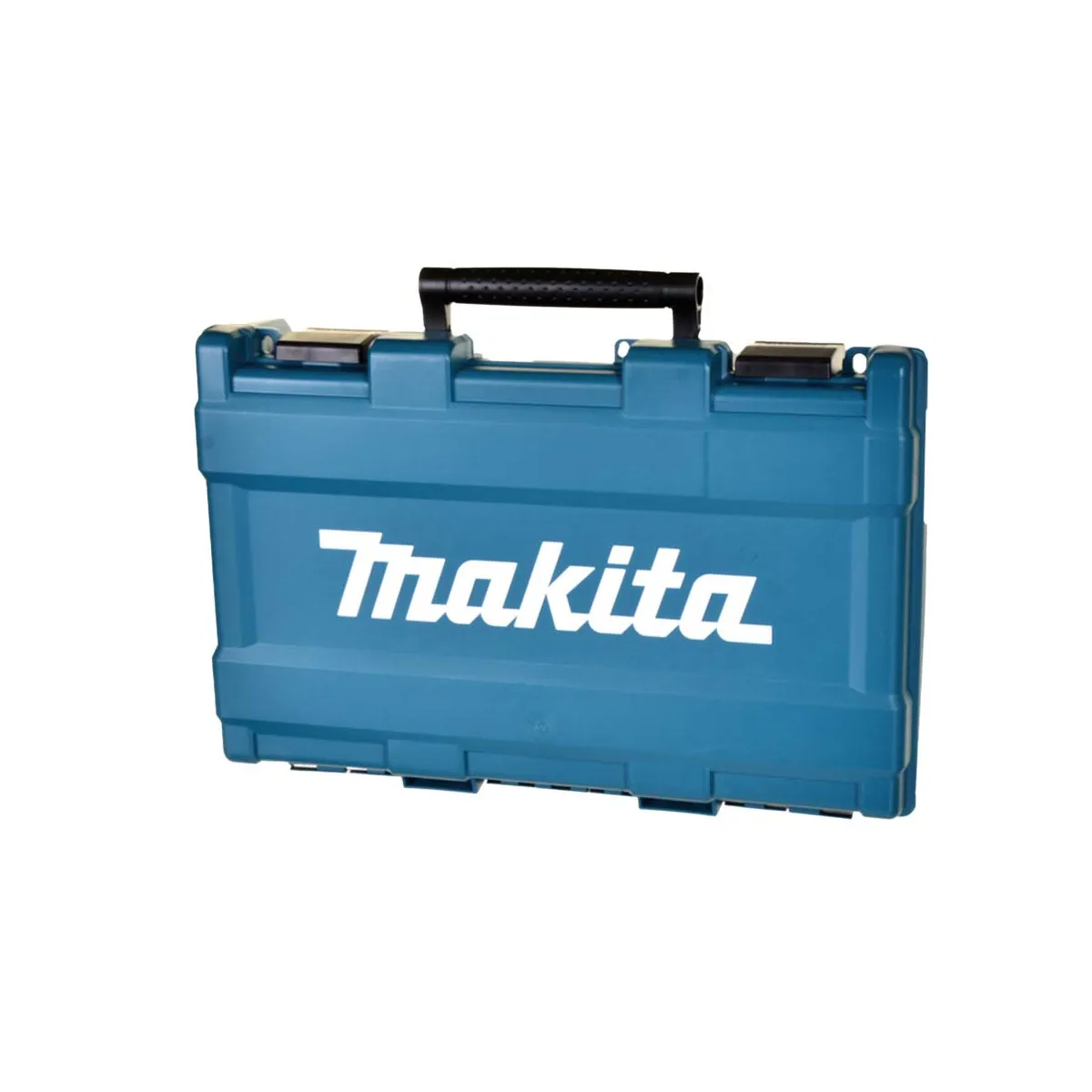

1 x Plastic Carrying Case ( 821691-2 )
Product Specification:
Part no: JV101DWAE
Barcode: 0088381818858
CXT Battery: Yes
Length of Stroke: 18 mm
Max. Cutting Capacity in Wood (90): 65 mm
Max. Cutting Capacity in Steel (90): 2 mm
Capacity Aluminium: 4 mm
Cutting capacity wooden planks: 60 mm
Orbital Action: Yes
Sound Power Level (LWA): 91 dB(A)
Sound Pressure Level (LpA): 80 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Tool weight with battery: 1.8 - 1.9 kg
Product Dimensions (L x W x H): 232 x 76 x 196 mm
Max. Bevel Range (Left): 45
Nominal Battery Voltage: 12 V
Max Output Power: 200 W
Strokes per Minute (SPM): 0 - 2900 min
Vibration Level. Cutting Sheet Metal: 5.5 m/s
Vibration Uncertainty (K Factor). Cutting Sheet Metal: 1.5 m/s
Vibration Level. Cutting Boards: 7.0 m/s
Vibration Uncertainty (K Factor). Cutting Boards: 1.5 m/s
Vacuum cleaner connection in / out: 25/- mm
**images for illustrative purposes only please refer to description and specification for full details of product**
