- Cordless 18V battery-powered design
- Sliding compound for wider cuts
- Lightweight: 14 kg with battery
- Integrated dust extraction system
- Compatible with Festool 18V system
- Adjustable miter and bevel ranges
Festool KAPEX KSC 60 EB-Basic 36V Brushless 216mm Sliding Compound Mitre Saw - 577775
The Festool KSC 60 EB-Basic 216mm Cordless Sliding Compound Mitre Saw combines portability and precision with its 18V battery-powered design. It features a 216mm blade and a sliding compound mechanism. allowing for wider cuts and precise angles. The saw is lightweight at just 14 kg. making it easy to transport and handle during extended use. With an integrated dust extraction system. it helps maintain a clean workspace. Additionally. it's 18V battery system. making it a great addition to any existing Festool tool collection. Perfect for a variety of cutting tasks. from carpentry to decking.
Features:
Precise: Twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision
Versatile: Mitre angles of up to 60 on each side and bevel angles of up to 47 on each side
Long-lasting: The combination of the brushless EC-TEC motor and dual battery system delivers maximum power
Mobile: Low weight. compact design. convenient handles
Work appropriately for the material: With saw blades for every material and speed preselection for speed adapted to the material
Low-dust work: Chip collection bag for dust-free work. even without a mobile dust extractor
Easy: Bevel for producing interior and exterior angles
Precise: LED spotlight for highlighting the cutting line and optimal visibility of the scribe mark
Flexible: Extension table for the stable support of longer workpieces
Clever: The additional feet increase the height of the work table on the KSC 60 to precisely match the height of the SYS 3 M 112 or SYS 1 Systainer
Accurate cuts: Precise. clearly visible scale. Either use the locking positions for the pre-set angles or individually adjust an angle using the easy-to-use clamp
Quite simple: The spindle stop enables the saw blade to be changed in next to no time
Mian Application:
Ideal for mobile use in assembly applications
Cutting boards and panels up to 305 x 60 mm
Trimming strips. profiles and square timber up to 60 mm thick
Precisely angled adjustment of skirting boards and cornices without calculations in conjunction with the bevel

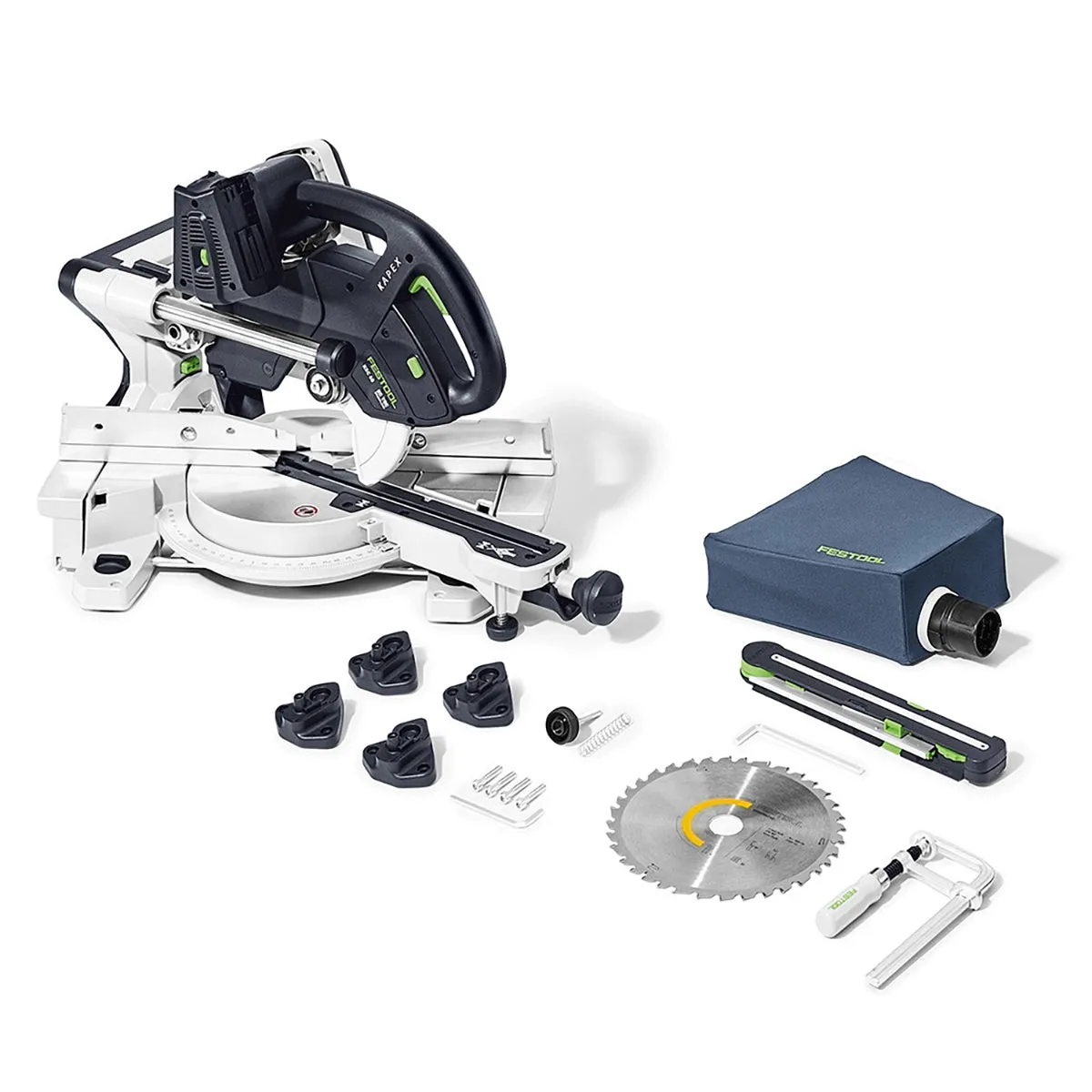

Comes With:
1 x Bevel
1 x Chip Collection Bag
1 x Circular Saw Blade WOOD UNVERSAL HW 216 x 2. 3 x 30 W36
1 x Elevation
1 x Fastening Clamp FSZ 120
1 x Hex Key. WAF 6
1 x LED Spotlight
Product Specification:
Part Number: 577775
Barcode: 4014549420164
Battery voltage: 2 x 18 V
Idle engine speed: 1300 - 1800/3500 min
Saw blade diameter: 216.00 mm
Cutting depth 90/90: 305 x 60 mm
Cutting depth at 45/90: 215 x 60 mm
Cutting depth 45/45 (left): 215 x 40 mm
Cutting depth 45/45 (right): 215 x 20 mm
Inclination angle: 47/46
Mitre angle: 60/60
Cutting depth 60/90: 150 x 60 mm
Dimensions (W x D x H): 639 x 459 x 442 mm
Dust extraction connection diameter: 27/36 mm
Drive type: Battery
Product weight without accessories: 17.30 kg
Transport weight incl. accessories: 22.00 kg
Sawing: Total vibration average. Ah: 2.50 m/s
Sawing: Standards series EN: EN 62841
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level. LWA: 101.00 dB(A)
Sawing: A-weighted sound pressure level. LpA: 88.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s
