Belle HPX01TS Bulldog Hydraulic Power Pack with BHB25XS Hydraulic Breaker Compact & High-Performance

The Belle Bulldog HPX01S is a highly efficient and portable on-site power source. now 12% more compact while maintaining top-tier performance. It features an integrated Power On-Demand (POD) system and boasts a more powerful engine compared to standard market models. The Belle BHB25X BHB breaker is robust and dependable. designed for high performance and compatibility with Belle Hydraulic Power Packs. These hand-held breakers come in various sizes. offering different impact energies and tool sizes to suit a wide range of applications.

Features:

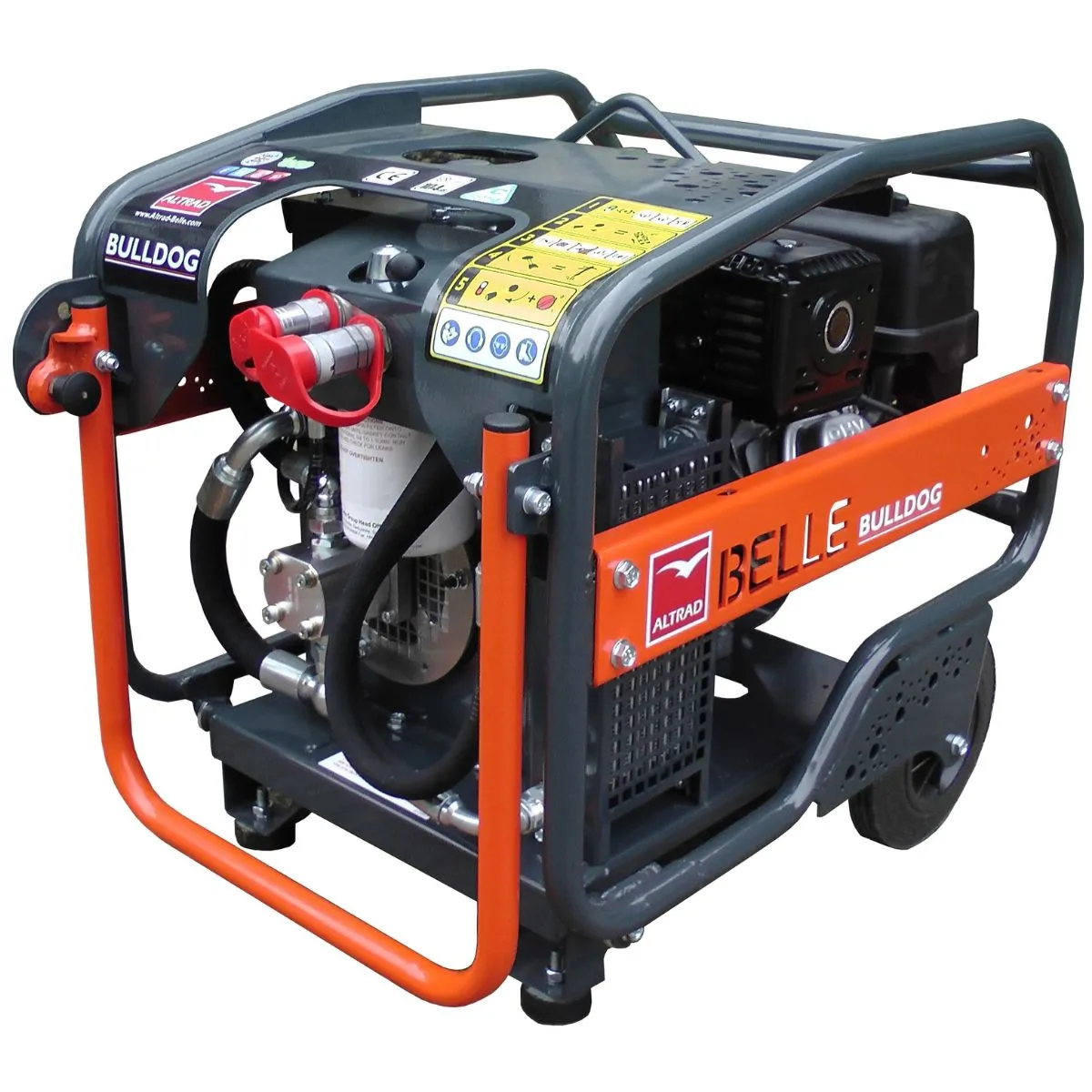

Belle HPX01TS Bulldog Hydraulic Power Pack:

Compact Design: 12% more compact than previous models while maintaining market-leading performance. Easily transportable in estate cars and small vans.
Tilt-Back Protection Frame: Facilitates simple routine maintenance.
Optional Tool Tray: Clip & Go removable tool tray available for convenient storage of hydraulic breakers and breaker steel.
Powerful Engine: Equipped with a more powerful engine compared to standard market equivalents.
Protected Oil Filler: Features a fully protected oil filler with a retaining chain.
Integrated POD System: Power On Demand (POD) system reduces carbon emissions and cuts fuel usage by 50%.
Recoil Protection System: Ensures enhanced safety during operation.
Low Oil Cut-Out: Protects tools and system pump with low engine and hydraulic oil cut-out.
Durable Construction: Rigid steel chassis and protection frame designed to prevent component damage.
Convenient Hose Management: Hose storage and lifting-eye integrated into the protection frame. with fitted wheels for easy on-site transportation.
Removable Hose Set: Supplied with a removable braided Siamese hose set featuring high-quality non-drip face couplings. pre-filled with hydraulic oil. Hose sets are easy to replace and aid in transportation and storage.
Versatile Compatibility: Suitable for use with Altrad Belle hydraulic breakers (BHB 25X. BHB 27X. BHB 12. BHB 23. BHB 25 & BHB 27) and hydraulic submersible pumps.
Customizable Appearance: Available in customer-selected colors.

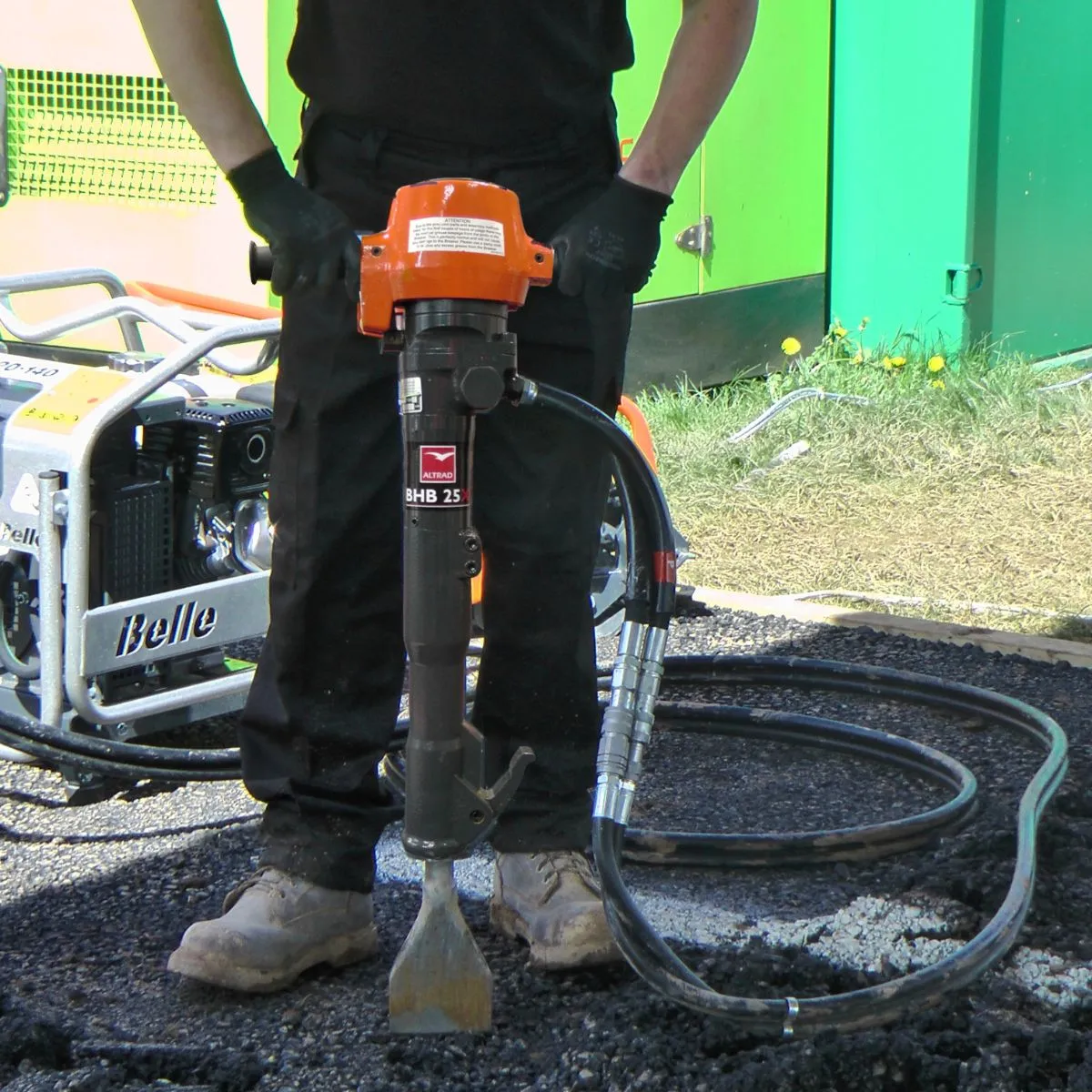

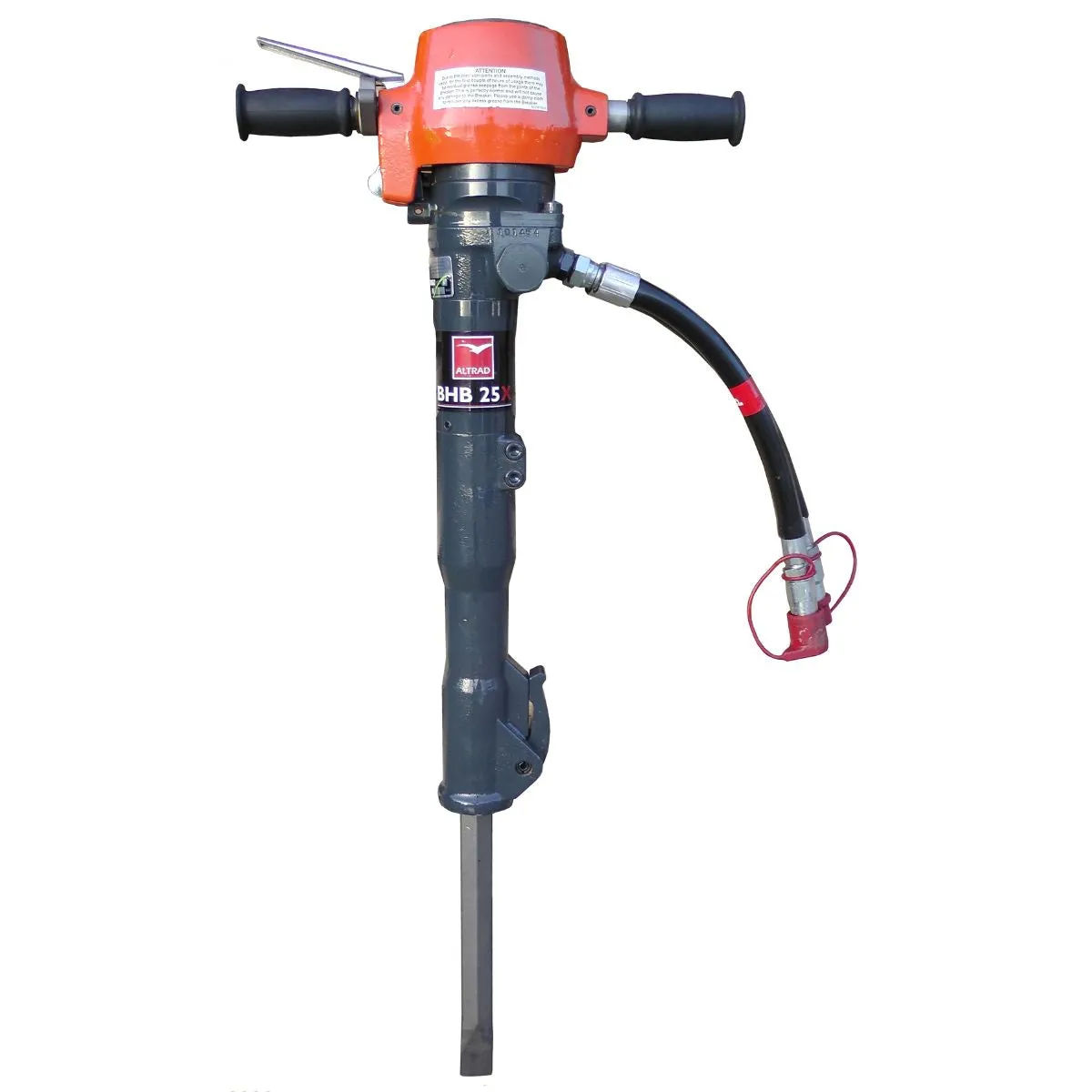

Belle BHB25XS BHB Hydraulic Breaker:

High-Performance: Engineered for optimal performance and reliability in demanding conditions.
Sturdy Construction: Built for durability and dependable use.
Compatibility: Designed to work seamlessly with Altrad Belle Hydraulic Power Packs.
Variety of Sizes: Available in multiple sizes to suit different applications.
Impact Energies: Offers a range of impact energies to meet diverse breaking needs.
Tool Sizes: Equipped with commonly used tool sizes for versatility in various tasks.

Product Specification:

Part no: HPX01TS BHB25XS

Belle HPX01TS Bulldog Hydraulic Power Pack:

Part no: HPX01TS
Barcode: 5031403035318
Model: Bulldog Honda GX270 Petrol c/w Tool Tray
Engine Power: 8.6 / 6.3 (Hp) - (kW)
Hose Length: 6.75 (m)
Pressure: 140 (bar)
Flow: 20 (l/min)
Oil Tank Capacity: 5.6 (L)
Fuel Tank Capacity: 6.0 (L)
Dimensions W x L x H: 683 x 705 x 320 (mm)
Weight: 67.5 (Kg)

Belle BHB25XS BHB Hydraulic Breaker:

Model: BHB 25X
Vibration Level - Midi Power Pack: 6.5 (m/sec2)
Vibration Level - Major Power Pack: 6.5 (m/sec2)
Restrictor: Open
Working Pressure: 90-110 (bar)
Max. Pressure: 160 (bar)
Flow: 20 (l/min)
Blows/min: 1600
Breaking Force: 55 (Joules)
Steel Size: 32 X 160 (mm)
Weight: 27.5 (kg)

**images for illustrative purposes only please refer to description and specification for full details of product**
